Inflation Products
Engineered for Safety, Performance, and Versatility
The extensive line of Halkey-Roberts inflation products is engineered for performance, safety, and versatility across medical, marine, and recreational applications. From manual and automatic inflators to oral inflation assemblies, valves, manifolds, and closures, each component is designed for reliable operation, secure sealing, and easy integration. With options for high-flow inflation, pressure relief, and compact or high-capacity configurations, our inflation systems deliver dependable solutions.

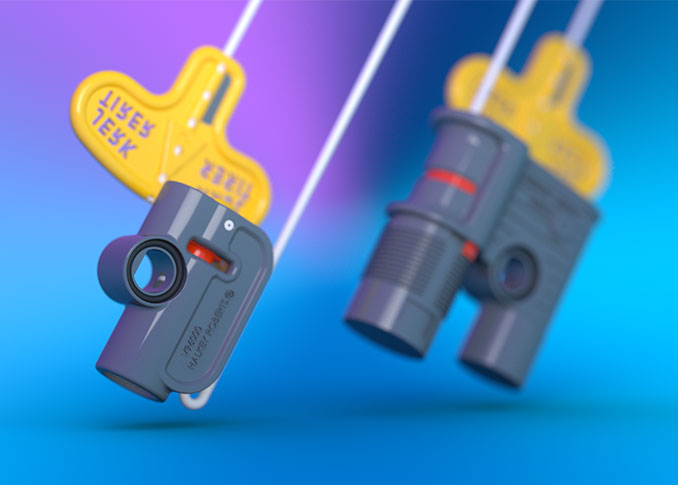

Manual/Automatic Inflators
Long Service Life
Our line of manual and automatic inflators is engineered to meet the diverse needs of aviation, marine, and personal flotation device applications. Designed for reliability, ease of use, and long service life, these inflators offer a range of activation methods—including manual-only, manual/automatic, and compact options—while supporting various CO2 cylinder sizes and lanyard configurations. Whether for recreational or commercial use, our inflators deliver dependable performance.

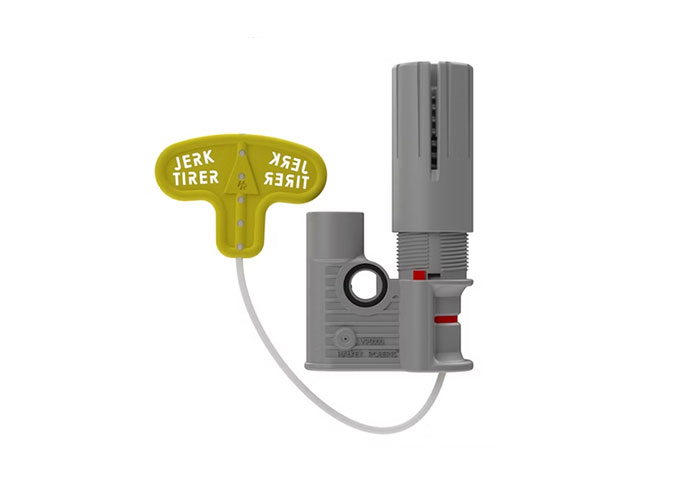

The Hydro 1F™ inflator is a dual-activation system designed for life vests requiring both manual deployment and automatic backup upon water immersion. Built for durability and reliability, it resists splash and humidity, features a single-point status indicator, and supports a five-year service life. Compatible with 3/8" and 1/2" threaded CO2 cylinders, it’s easy to rearm and available with standard or custom lanyard lengths.
V95000 Service Parts
- V90113 manifold o-ring (2)
- V87405L gasket for 1/2" thread
- V87405S gasket for 3/8" thread
- V80040 bobbin
Features and Benefits
- Durable design – splash- and humidity-resistant with a five-year service life
- Single point indication
- Easy and inexpensive to rearm
- Standard lanyard lengths:
- 4" (10 cm)
- 6" (15 cm)
- 10" (25 cm)
- 11.4" (29 cm)
- 13.5" (34 cm)
- Free length with no tab
- Additional lanyard lengths available by special order (minimum purchase required)
- Available for either 3/8" or 1/2" CO2 threaded cylinder
Specifications and Technical Information
- Materials:
- Glass-reinforced nylons
- Metal components: marine-grade stainless steel
- Specifications:
- Meets UL 1191 standard
- Meets Cen/ISO 12402-7 standard
- UL recognized USCG 1F component
Additional Information
- V95000xxB Part Drawing
- V95000xxBF Part Drawing (French)
- Status Indicator Reset - Video Instructions (English)
- Réinitialisation de l'indicateur d'état - Instructions vidéo (French)
- V95000 Hydro 1F™ Rearm Instructions
- V95000 Hydro 1F™ Tech Data Sheet
- V9500 CONV Manual Conversion Rearm Instructions
- V9500xxBM Manual Conversion Labeling
- V9500xxBMF Manual Conversion Labeling (French)
- V80040 Bobbin Instructions for Use
- V90139 Universal Cylinder Holder Instructions

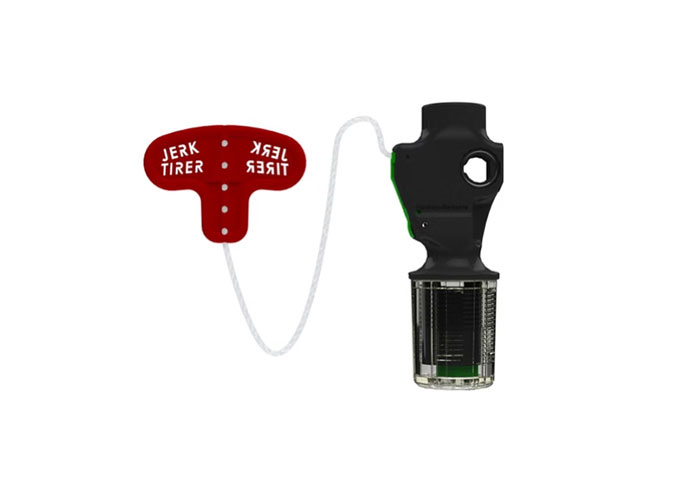

The Alpha Inflator® manual/automatic is designed for life vests requiring automatic inflation upon water immersion, with manual backup capability. Built to withstand splash and humidity, it offers a five-year service life and is compatible with both 3/8" and 1/2" threaded CO2 cylinders. Standard lanyard lengths range from 4" to 13.5", with adjustable and custom options available.
Available Replacement Parts
- V90113 manifold o-ring (2)
- V87405L gasket for 1/2" thread
- V87405S gasket for 3/8" thread
- V90124 indicator clip
- V80040 bobbin
- V85201MY manual cap
- V90125YMK manual cap
Assembly tooling
- D830AO sealing die
Features and Benefits
- Dual activation – supports both manual and automatic inflation for enhanced safety
- Humidity-resistant – improved splash- and humidity-resistance for reliable performance
- Long service life – Designed for five years of dependable use.
- Flexible compatibility – Available for 3/8" or 1/2" CO2 threaded cylinders
- Multiple lanyard options:
- 4"(10cm)
- 6" (15 cm)
- 10" (25 cm)
- 13.5" adjustable (34 cm) on the V90000xN135
- Tested reliability – passes 1F inflator humidity testing requirements
Specifications and Technical Information
- Materials:
- Glass-reinforced nylon
- Metal components: marine-grade stainless steel
- Specifications:
- Meets UL 1191 standard
- Meets Cen/ISO 12402-7 standard
- UL recognized as a USCG Code 6F component
Additional Information
- V90000xTxxB Part Drawing
- V90000xxAxB Part Drawing
- V90000xTFxxB Part Drawing
- V90000xN135B Part Drawing
- Alpha Inflator® V90000 Tech Sheet
- Alpha Inflator® V90000 rearm instructions:
- V90125YMK Manual Cap Conversion
- V90000 Manual Conversion:
- V80040 Bobbin Instructions For Use
- V90139 Universal Cylinder Holder Instructions

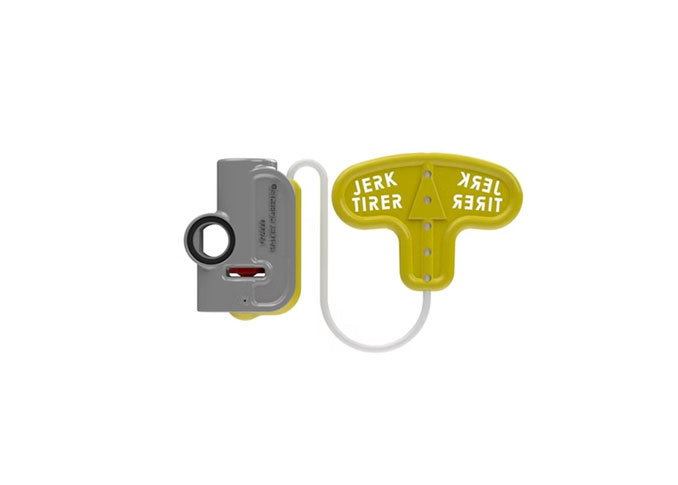

The Pro 3F® Single Point Manual Inflator is designed for life vests requiring manual activation only. Compact and reliable, it features single-point status indication and is easy to rearm, making it ideal for both recreational and commercial use. Compatible with 3/8" and 1/2" threaded CO2 cylinders, it’s available with a range of standard and custom lanyard lengths.
Available Replacement Parts
- V90113 manifold o-ring (2)
- V87405L gasket for 1/2" thread
- V87405S gasket for 3/8" thread
Features and Benefits
- Single point indication
- Easy and inexpensive to rearm
- Service life:
- Recreational: 3 years
- Commercial: 2 years
- Standard lanyard lengths: 4" (10 cm), 6" (15 cm), 10" (25 cm)
- Additional lanyard lengths available by special order (minimum purchase required)
- Available for either 3/8" or 1/2" CO2 threaded cylinder
Specifications and Technical Information
- Materials:
- Glass-reinforced nylon
- Metal components: marine-grade stainless steel
- Specifications:
- Meets UL 1191 standard
- Meets Cen/ISO 12402-7 standard
- UL recognized as a USCG Code 3F component
Additional Information
- V96000xx Part Drawing
- V96000xxF Part Drawing (French)
- V96000xxx Part Drawing
- V96000xxxF Part Drawing (French)
- V96000 Pro 3F® Hydro Tech Data Sheet
- V96000 Pro 3F® Rearm Instructions
- V90139 Universal Cylinder Holder Instructions
- Introduction of Updated 3F® Inflator into Retail Channels
Service Information for V96000 Series Inflators with Date Codes before 6/17/2024

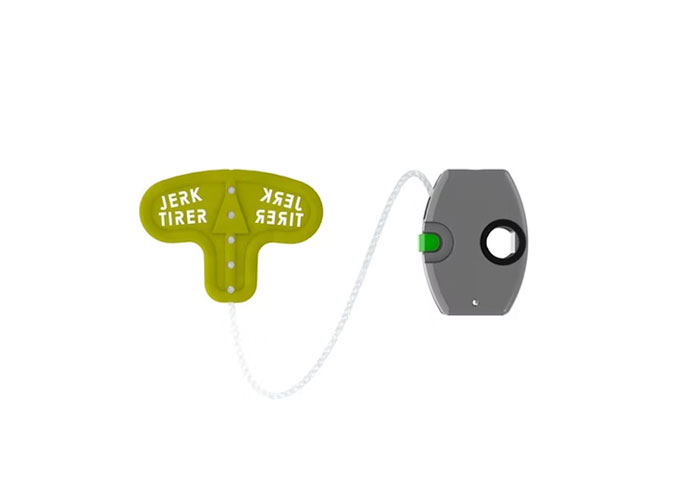

The 840 manual inflator is designed for life vests requiring manual activation only, with primary applications in aviation and marine environments. Built for durability and versatility, it is available in configurations suited for both non-corrosive and marine conditions, with multiple lanyard and color options to meet specific operational needs.
Available Replacement Parts
- 8491AM: top manifold gasket
- 8492AM: bottom manifold gasket
- 849AM: 3/8" cylinder gasket
- 849AML: 1/2" cylinder gasket
- 8451AMAG: green lock clip
- 8451AMA: red lock clip
- 8452AM: red lock pin
- V85006: green lock pin
Features and Benefits
- Available for both marine applications or non-corrosive environments
- Available colors:
- Black body for non-corrosive environments
- Gray body for marine applications
- Available with either ball or pull-tab lanyard
- Standard lanyard lengths:
- 4" (10 cm)
- 5" (13 cm)
- 6" (15 cm)
- Additional lanyard lengths available by special order (minimum purchase required)
- Available with a breakaway lever (840BIxx)
- UL recognized for use on USCG approved vests
Specifications and Technical Information
- Materials:
- Glass-filled polyester
- Metal components: marine-grade stainless steel and electroless nickel-plated brass
- Specifications:
- Meets UL 1191 Standard
- Meets Cen/ISO 12402-7 Standard
- UL recognized as a USCG Code 6F Component
Additional Information

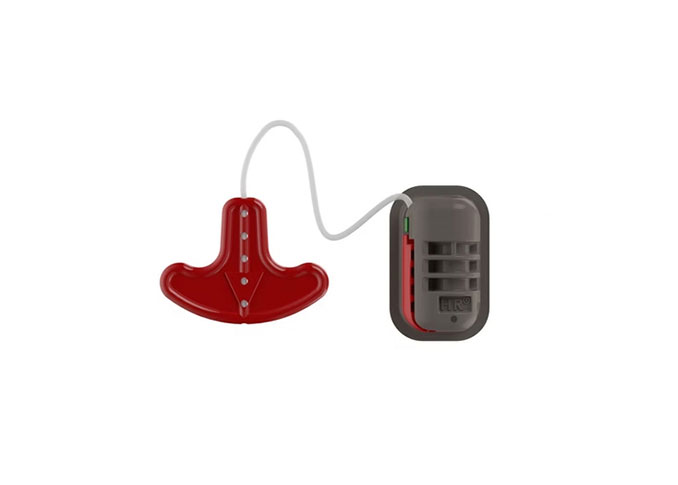

The V87000 mini inflator is engineered for applications where space and weight are critical, making it ideal for compact life-saving equipment. Despite its small size, it delivers reliable manual inflation performance and is compatible with both 3/8" and 1/2" threaded CO2 cylinders. The inflator is available in color-coded bodies for easy thread size identification and can be welded to FAA-approved or marine fabrics.
Available Replacement Parts
- V87400 lock clip
- 849AM 3/8" cylinder gasket
- 849AML 1/2" cylinder gasket
- SD87000 sealing die
- TV87110 pivot pin removal
Features and Benefits
- Lightweight design – ideal for applications where weight and volume are limited
- Color-coded bodies – gray for 3/8" thread, and tan for 1/2" thread for easy identification
- Lanyard options – available in 4" (10 cm) in gray or tan, and 5" (13 cm) in tan only
- Versatile fabric compatibility – may be welded to FAA-approved or commonly used marine fabrics
Specifications and Technical Information
- Materials:
- 100% polyether-based
- Body: polyurethane
- Specifications:
- Available for either 3/8" or 1/2" threaded CO2 cylinders
- Meets FAA, TSO-C13F requirements
Additional Information

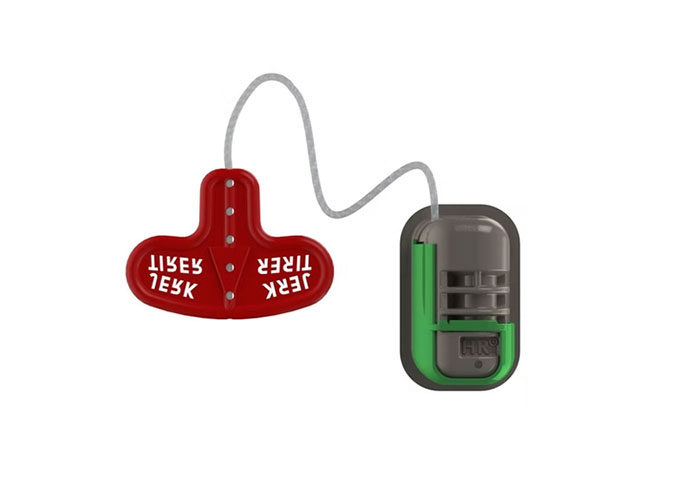

The V87000 mini marine inflator is engineered for applications where corrosion resistance, compact size, and lightweight design are critical. Ideal for marine environments, it features stainless steel components, color-coded bodies for thread size identification, and compatibility with commonly used marine fabrics.
Available Replacement Parts
- V87400M lock clip
- 849AM 3/8" cylinder gasket
- 849AML 1/2" cylinder gasket
- SD87000 sealing die
- TV87110 pivot pin removal
Features and Benefits
- Lightweight design – compact and low-profile for space-sensitive applications
- Corrosion resistant – stainless steel components ensure durability in marine environments
- Color-coded bodies – gray for 3/8" thread, and tan for 1/2" thread for easy identification
- Lanyard options – available in 4" (10 cm) gray or tan, and 5" (13 cm) tan only
- Weldable compatibility – designed to bond securely with common marine fabrics for reliable integration
Specifications and Technical Information
- Materials:
- 100% polyether-based
- Body: polyurethane
- Specifications:
- Available for either 3/8" or 1/2" threaded CO2 cylinders
- Specifications: Meets UL1191 and ISO 12402-7 requirements
Additional Information

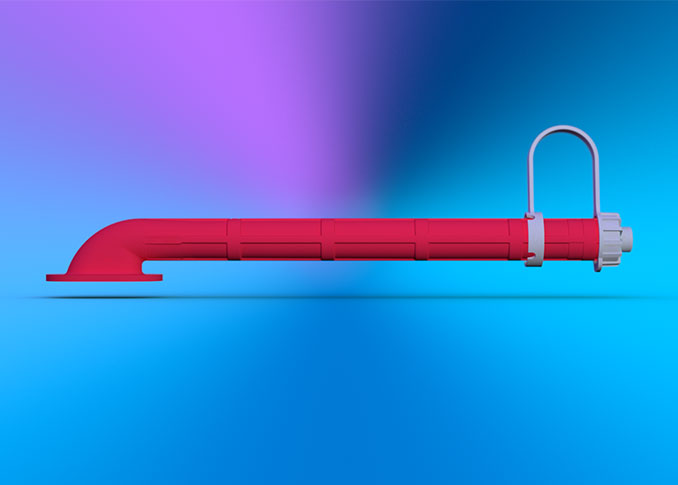

Oral Tube Assemblies
Oral Inflation
Our oral tube assemblies are designed for reliable oral inflation and overpressure protection in life-saving applications. Engineered for secure bonding to films or coated fabrics, they feature high-flow designs for easy inflation, durable construction using polyether-based polyurethane, and optional integrated relief valves. Available in multiple lengths, each assembly is 100% pressure tested and meets international safety standards, including UL recognition for use on USCG-approved life vests and compliance with CEN/ISO 12402-7.
The V73000 breather tube and relief valve with dust cap is designed for applications requiring oral filling and pressure relief for overpressure protection.
Available Replacement Parts
- 736ACU4 dust cap
Assembly Tool Numbers
- TV73703G vacuum/fill adapter
- SD73000 weld die
- T740 valve removal tool
Features and Benefits
- Large, round welding flange maximizes weld strength
- Overall length: 6.75" (17.15 cm)
- Available colors: red
- 100% pressure tested
Specifications and Technical Information
- Materials:
- Tube: Polyether urethane
- Dust cap: black urethane
- Valve: acetal, silicon, stainless steel, or aluminum
- Specifications:
- UL recognized for use on USCG-approved life vests
- Meets Cen/ISO12402-7 standard
Additional Information

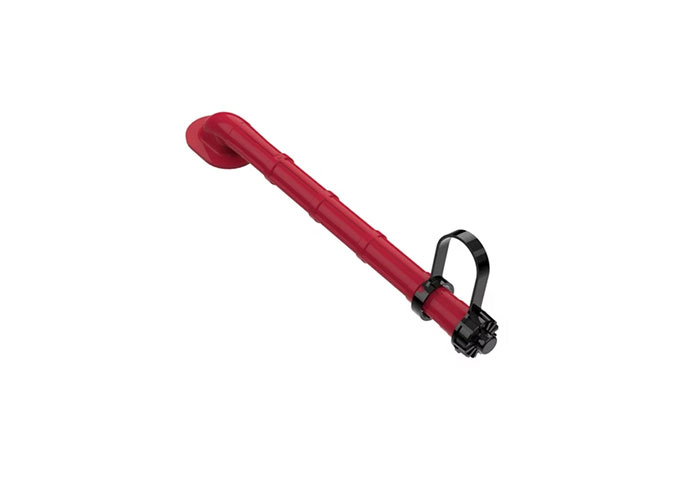

The 740ROL Series oral tubes are engineered for applications requiring a durable, high-flow connection to film or coated fabric materials. Designed for oral inflation and topping off, these tubes feature a smooth radius for optimal flow and fabric protection, along with a large oval sealing flange for strong, reliable bonding.
Features and Benefits
- Strong bonding – large oval sealing flange maximizes weld strength to fabric surfaces.
- Fabric-safe design – smooth radius promotes maximum flow while preserving fabric integrity
- Efficient inflation – high-flow design supports easy oral inflation and top-off
- Size options – available in lengths of 4.13" (10.95 cm), 5.53" (14.05 cm), and 6.75" (17.1 cm)
- Available in red and black
- 100% pressure tested
Specifications and Technical Information
- Materials:
- Tube: polyether urethane
- Dust cap: black urethane
- Valve: acetal, silicone, stainless steel, or aluminum
- Specifications:
- UL recognized for use on USCG-approved life vests
- Meets Cen/ISO 12402-7 standard
Additional Information

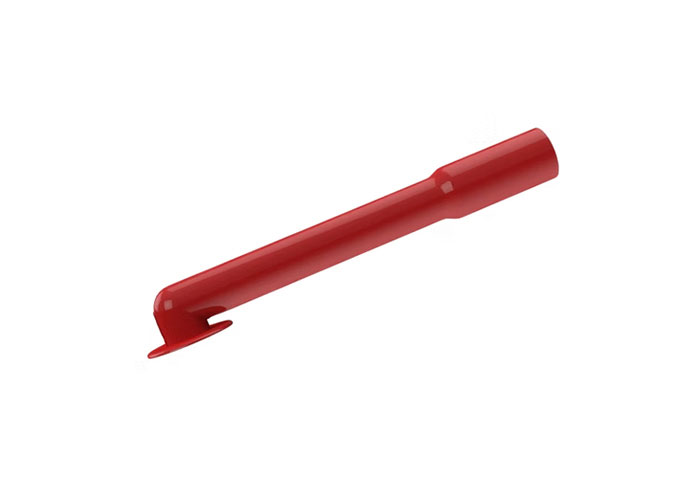

The 720ACU Series Oral Tubes are designed for applications requiring a strong, durable connection to either film or coated fabric materials. Ideal for oral inflation systems, these tubes offer reliable performance and are available in multiple lengths to suit various design needs.
Features and Benefits
- Available in red and black
- Available lengths:
- 4.31" (10.95 cm)
- 5.53" (14.05 cm)
- 6.75" (17.1 cm)
Specifications and Technical Information
- Materials:
- Tube: polyether-based polyurethane
Additional Information

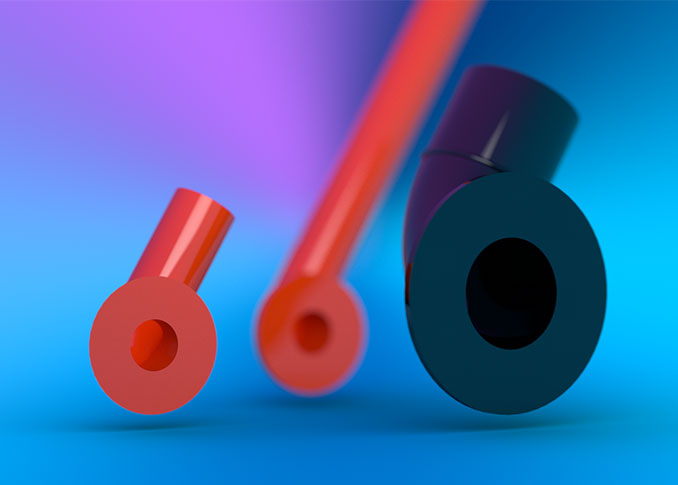

Right Angle Connectors
1", 1-3/16", 1-3/4" and Various Lengths
Our right angle connectors provide secure, heat-sealable connections to flexible materials such as PVC or polyurethane films, making them ideal for disposable systems. Available in a range of sizes to suit various application needs, these connectors are engineered for strong seals, reliable performance, and easy integration with film or coated fabric. Offered in red, black, or clear colors, they support both functional and visual design requirements in medical and industrial settings.

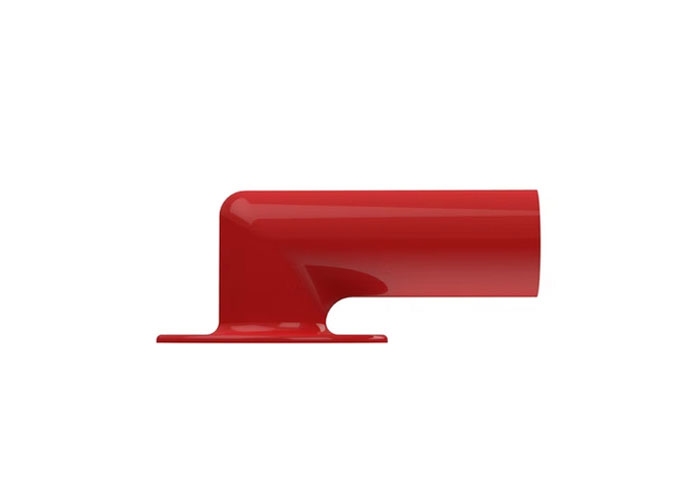

The 167 series one-inch right angle connector is designed for applications requiring connection to either a film or coated fabric.
Features and Benefits
- Heat sealable to PVC or polyurethane films
- Economical for disposable systems
- Available colors: red, black, and clear
Specifications and Technical Information
- Materials:
- PVC: clear
- Polyurethane: red and black
Additional Information

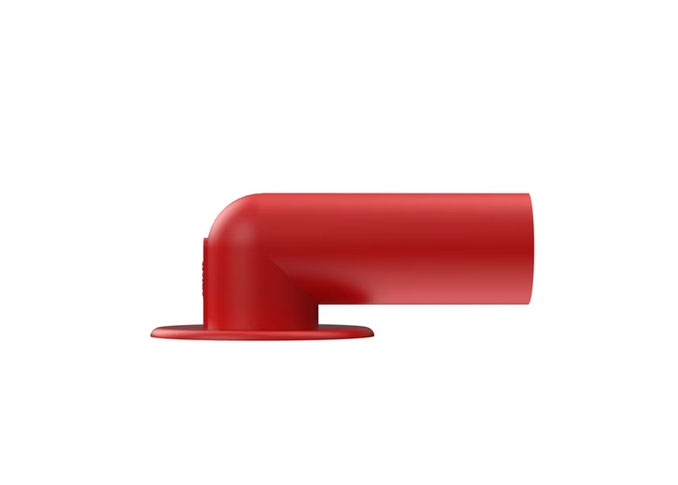

The 727 series 1 3/16" right angle connector is designed for applications requiring connection to either a film or coated fabric.
Features and Benefits
- Heat sealable to PVC or polyurethane films
- Economical for disposable systems
- Available colors: red, black, and clear
Specifications and Technical Information
- Materials:
- PVC: clear
- PVC/polyurethane blend: red and black
Additional Information
The 927 series 1 3/4" right angle connector is designed for applications requiring connection to either a film or coated fabric.
Features and Benefits
- Heat sealable to PVC or Polyurethane films
- Economical for disposable systems
- Available colors: red and black
Specifications and Technical Information
- Materials:
- Polyurethane: Red and black
- PVC/polyurethane blend: black
Additional Information

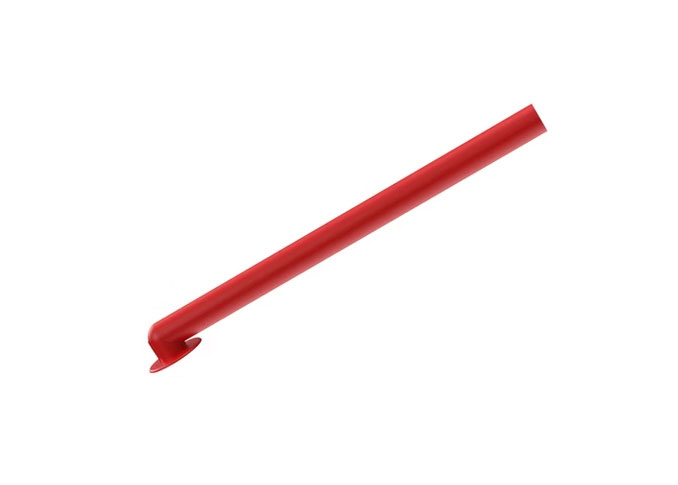

The 727 right angle oral tube is designed for applications requiring connection to either a film or coated fabric.
Features and Benefits
- Heat sealable to PVC or Polyurethane films
- Economical for disposable systems
- Available lengths: 4.31" (10.95 cm), 5.53" (14.05 cm), 6.75" (17.1 cm)
Specifications and Technical Information
- Materials:
- Polyurethane
- PVC/polyurethane blend
Additional Information

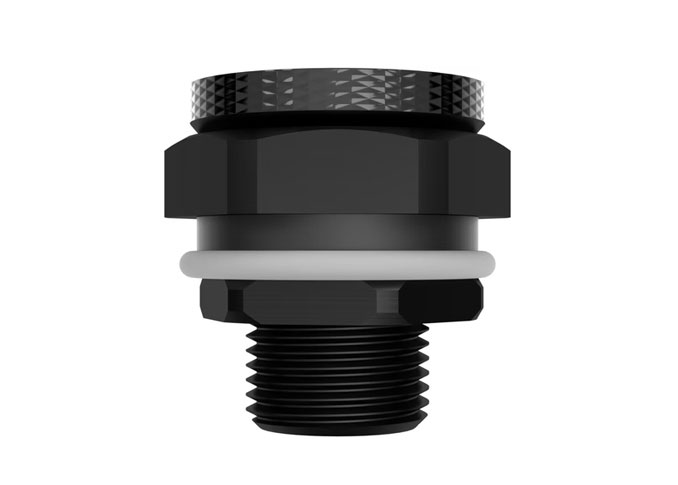

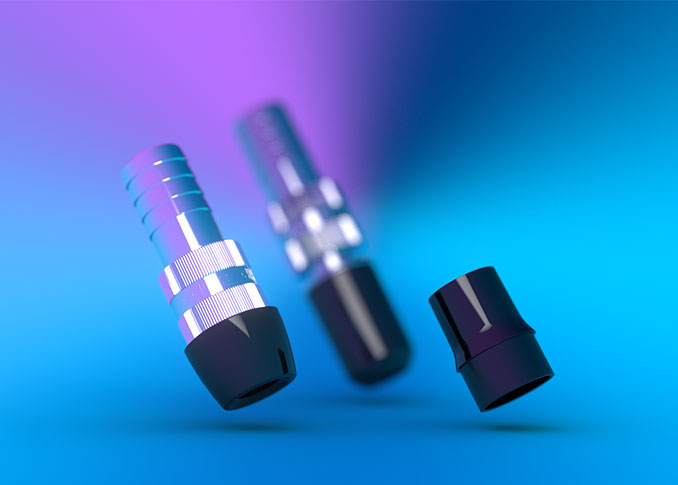

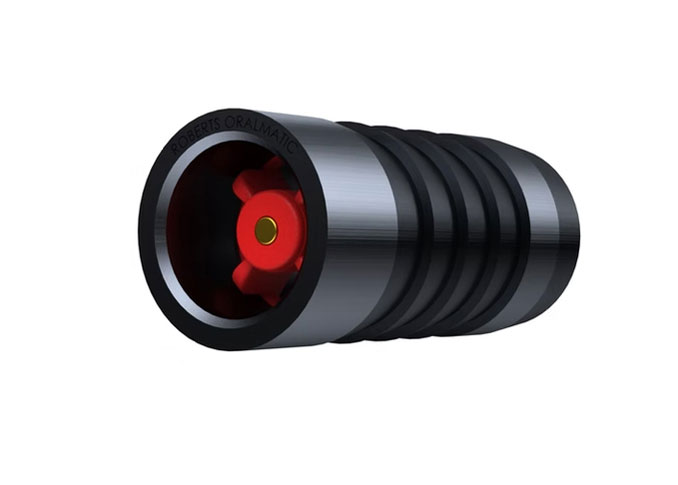

Oral Inflation and Relief Valves
Dependable Performance
Our oral inflation and relief valves are engineered for dependable performance in inflatable systems. Designed for direct insertion into oral tubes or mounting in flanges, these compact valves support a variety of inflation and relief functions depending on the application. Compatible with multiple tube sizes and crimp rings, they are ideal for life vests and other safety-critical devices.

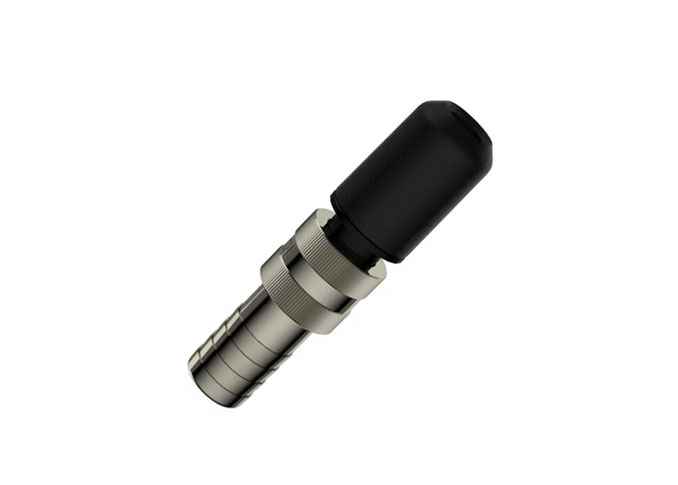

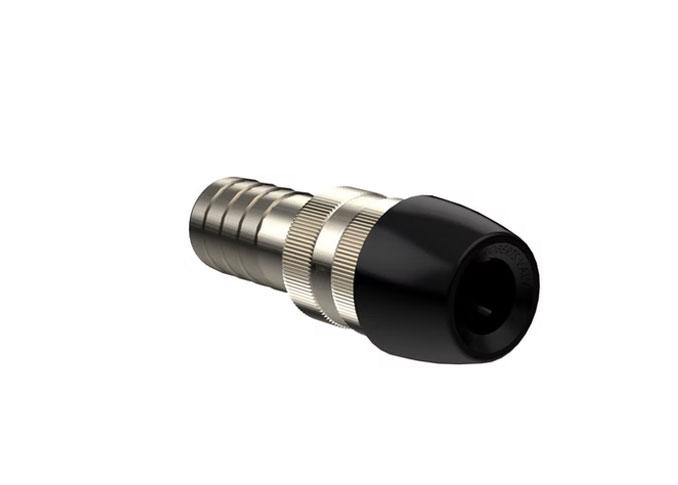

The 800RO series Oralock™ oral valves are high-flow oral inflation valves, recommended for use with valve 809RT crimp ring.
Features and Benefits
- High flow
- Push-to-open valve
- Available in black
Specifications and Technical Information
- Materials:
- Body: nickel-plated brass (800RO); black oxide brass (800ROK)
- Mouthpiece: acetal
- Spring: stainless steel
- Flow: 1.7 SCIM at 0.45 psig
Additional Information
The 800ROL oral valve is a high-flow oral inflation valve, recommended for use with valve 809RT crimp ring.
Features and Benefits
- High flow
- Push-to-open valve
- Available in black
Specifications and Technical Information
- Materials:
- Body: nickel-plated brass
- Mouthpiece: rubber or silicone
- Spring: stainless steel
- Flow: 1.7 SCIM at 0.45 psig
- Compliance specifications: QQB-626
Additional Information

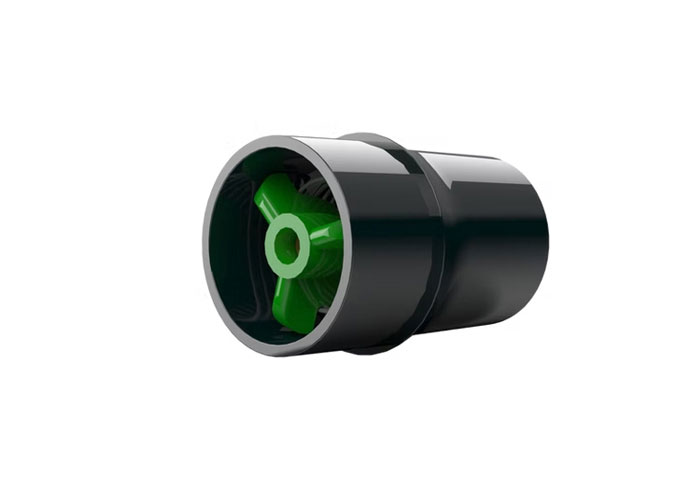

The 720ROA Oralmatic™ tube end valve is used for insertion directly into oral tubes.
Features and Benefits
- May be inserted in the 727 right angle oral tube
- May be mounted in flanges in either an inflation or pressure-relief mode
- Available in black
Specifications and Technical Information
- Materials:
- Body: anodized aluminum
- Stem: brass and silicone
- Spring: stainless steel
- Poppet: polypropylene
- Opening pressure: 0.03 to 0.6 psig
- Temperature range: -65°F to +160°F (-54°C to +71°C)
Additional Information
The 730ROA and 730ROAR tube end valves are used for insertion directly into oral tubes.
Features and Benefits
- May be inserted in the 737 or 747 tubes
- May be mounted in flanges in either an inflation or pressure-relief mode
- Colors: black and white
Specifications and Technical Information
- Materials:
- Body: acetal
- Stem: aluminum and silicone
- Spring: stainless steel
- Opening pressure: 0.03 to 0.44 psig
- Temperature range: -60°F to +160°F (-51°C to +71°C); per TSO-C13F
- Compliance specifications: TSO-C13F
Additional Information

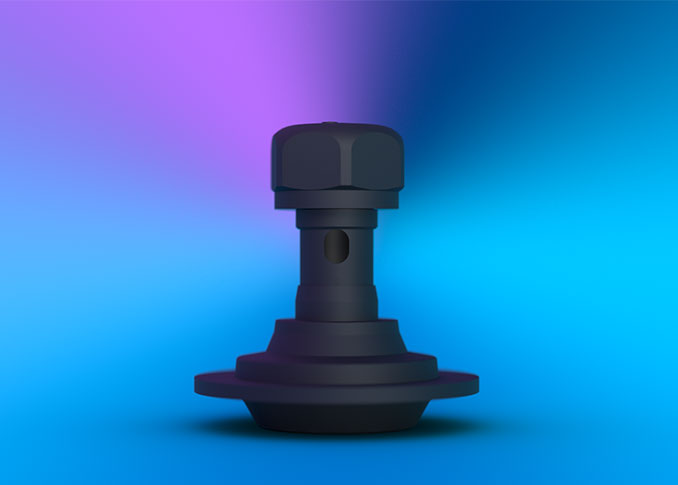

Manifolds
Full Gas Flow
Our manifolds are designed for efficient gas flow, secure inflation, and reliable sealing in inflatable systems. Featuring unitized construction to minimize leak paths and enhance stability, they incorporate patented valve technology for low-pressure activation and full CO2 cylinder filling. Compatible with most urethane-coated chambers, these manifolds support smooth system integration.

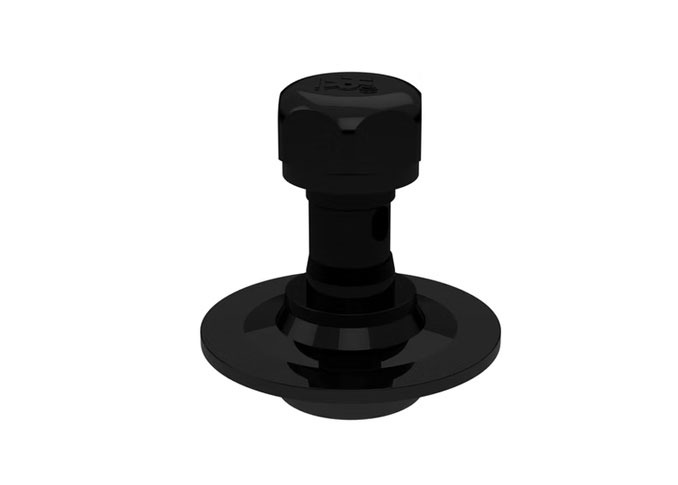

The 830B08 molded manifold with our patented silicone valve provides positive sealing with low-pressure activation to allow a complete fill from a CO2 cylinder.
Available replacement parts
- 8491AM gasket (2 required)
- 830B03 cap nut
- 830B07G valve
- D830A0 welding die
Features and Benefits
- Unit construction reduces leak paths and increases stability
- Urethane flange welds to most urethane-coated inflation chambers
- Uses the same sealing die as our brass manifold for a seamless production transition
- Self-aligning cap nut prevents cross-threading in production
- Stem is molded from high-strength engineered plastics for strength and high corrosion resistance
Specifications and Technical Information
- Materials:
- Flange: Polyether urethane
- Stem: Glass-filled nylon
- Cap nut: Glass-filled nylon
- Valve: Silicone/acetal
- Meets UL 1191 requirements
- 100% leak tested
- 100% crack tested
Additional Information

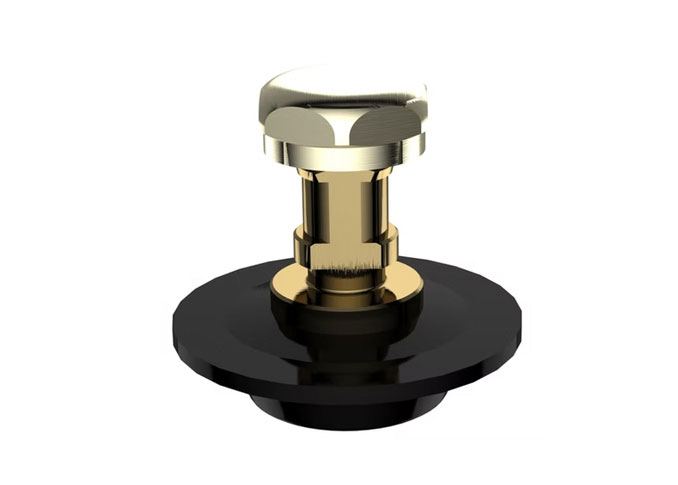

The 830011001 Manifold is designed for full gas flow during inflation.
Available replacement parts
- 833AOI cap nut
- 832AO valve core
- D830AO sealing die
Features and Benefits
- Flange is overmolded to stem
- Unit construction reduces leak paths and increases stability
- Urethane flange welds to most urethane coated inflation chambers
Specifications and Technical Information
- Materials:
- Stem: brass
- Flange: polyether-based urethane
- Cap nut: brass
- Meets UL 1191 standard
Additional Information

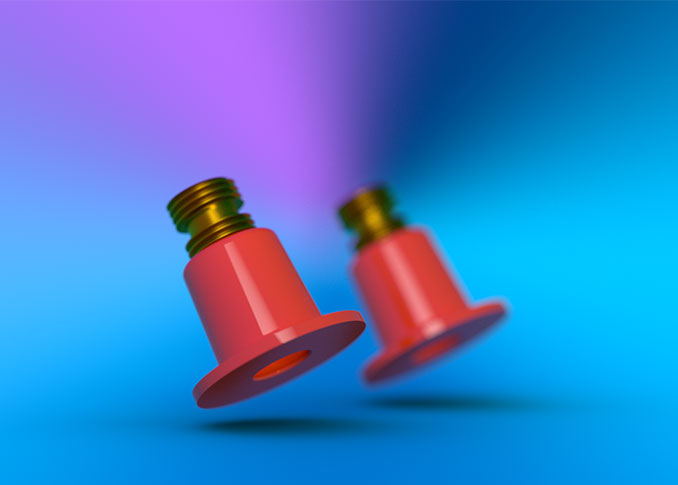

Inflation Tubing Flanges
Vinyl Flange Valve
This compact valve is designed for easy electronic sealing or solvent bonding to PVC film, and features a simple twist-to-seal mechanism with internal 12x36 TAP threads.

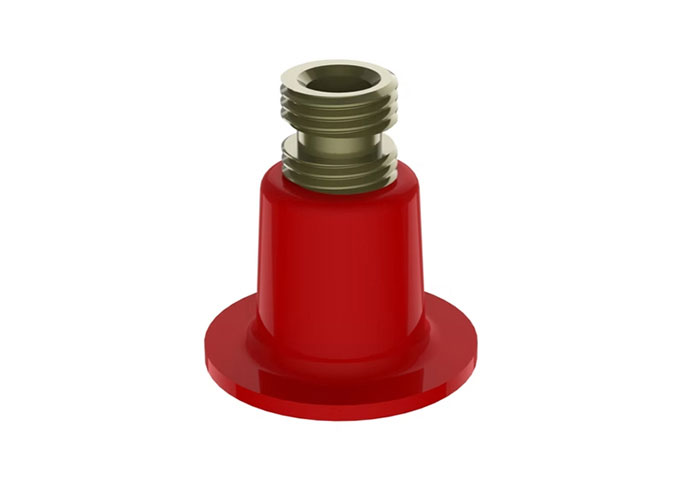

The 40ASE vinyl flange valve is designed for electronic sealing or solvent bonding to PVC film.
Features and Benefits
- One twist "turn to seal" mechanism with internal (12x36 TAP) threads
- Electronic sealing or solvent bonding to PVC film
- Available in red
Specifications and Technical Information
- Materials:
- Flange: PVC
- Insertion valve: nickel-plated brass
Additional Information

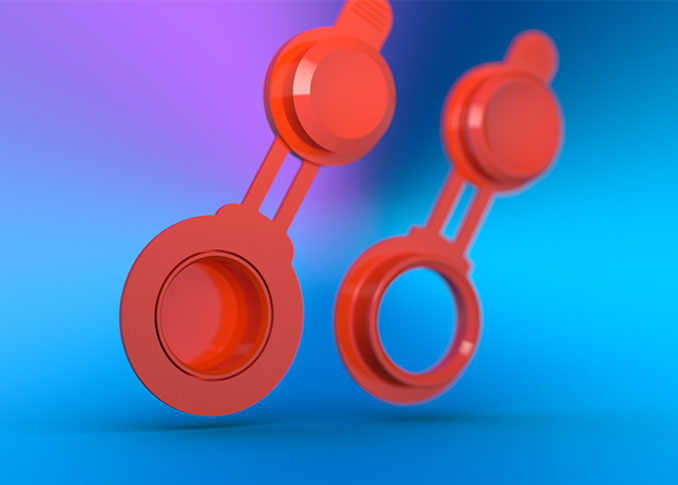

Inflation Closures
Secure Seals and Flows
Our inflation closures are designed to provide secure sealing and flow in both medical and recreational inflatable systems. Available in various capacities, these closures support quick inflation and deflation, with options featuring integrated flapper valves for automatic backflow protection. Their versatile designs allow for compatibility with disposable bags, inflatable covers, and high-volume applications.

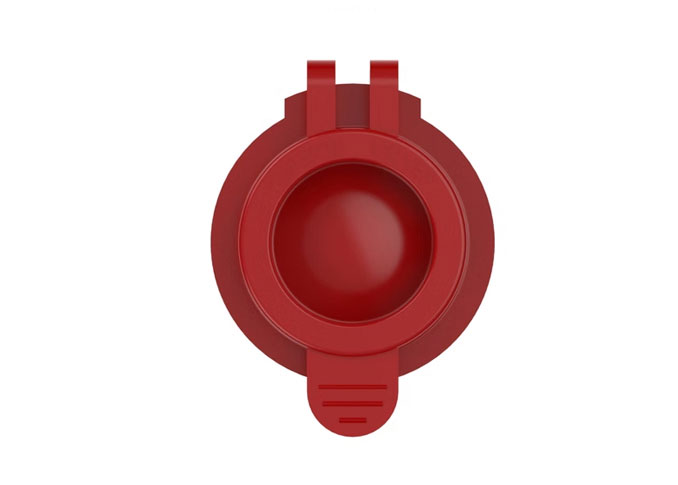

The 650 series closure/flow check valves provide closure and drains for disposable medical bags and recreational products.
Features and Benefits
- May be used as a dump valve for quick deflation
- Stock color: red
- Other colors available by special order (minimum quantities apply)
Specifications and Technical Information
- Materials:
- PVC
Additional Information

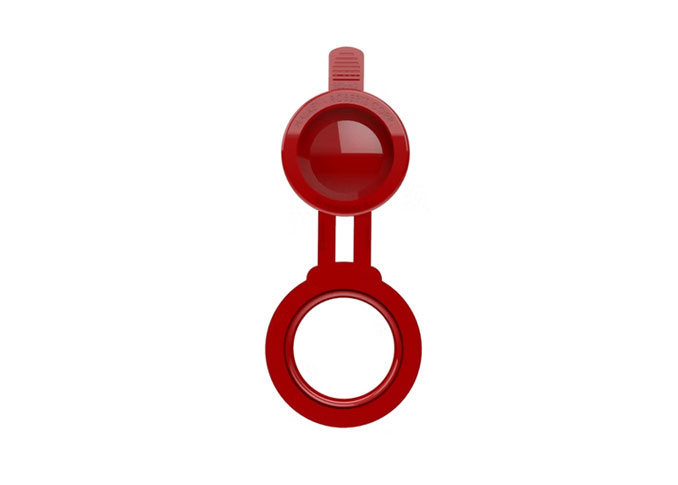

The 950 series closure/flow check valves are an extra large version of our 650AD series. The valves provide closure and drains for recreational projects where super capacity flow is desired.
Features and Benefits
- Stock color: red
- Other colors available by special order (minimum quantities apply)
Specifications and Technical Information
- Materials:
- PVC
- Medical-grade USP Class VI PVC available
Additional Information

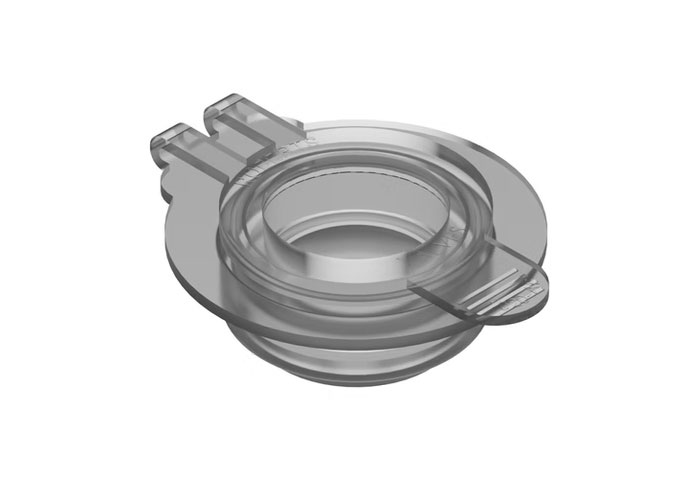

The 1020 series closure/flow check valves feature automatic reverse-flow checking with a flapper, positive sealing with a plug and tension ring, and a large dumping capacity during exhaust.
Features and Benefits
- May be electronically sealed to inflatable covers
- Stock colors: red and clear
- Other colors available by special order (minimum quantities apply)
Specifications and Technical Information
- Materials:
- PVC
- Medical-grade USP Class VI PVC available
Additional Information

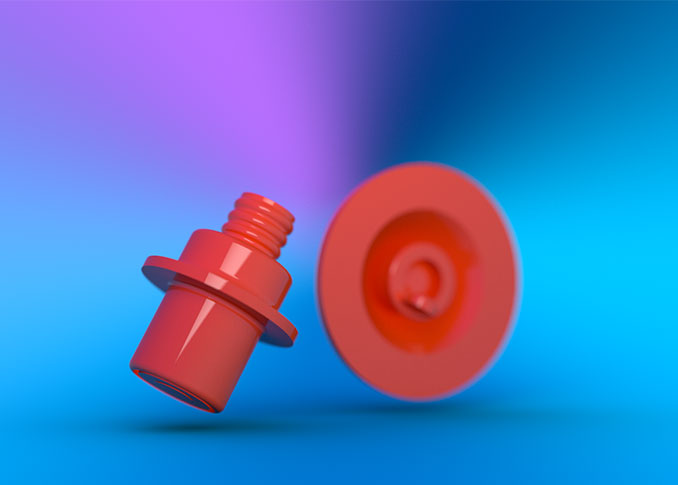

Inflation Valves
Easy Operation
Our inflation valve options include low-profile push-pull valves for easy manual inflation and deflation, manually-operated metal relief valves for panel mounting, and flush-sealing vinyl valves for managing both plain and corrosive gases or fluids. Each valve offers reliable performance and compatibility with standard inflation components.

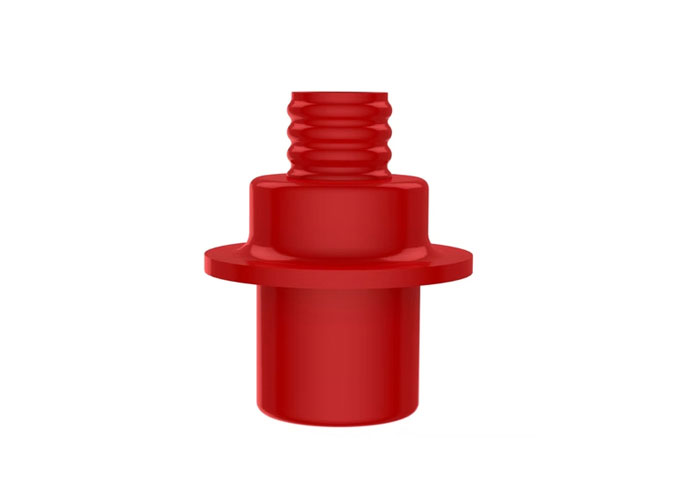

The 320AC and 320ACU push-pull valves are easy to operate. They may be opened, inflated, and closed entirely by mouth, and the stem fits all standard pumps and service station hoses.
Features and Benefits
- Push-pull system for easy operation
- Low-profile has minimum protrusion from the surface
- Available colors: red
Specifications and Technical Information
- Materials:
- PVC
- PVC/Urethane
Additional Information
The 190ART is a manually opening and closing valve.
Features and Benefits
- "Turn-to-seal" mechanism
- Designed for panel mounting in a 1/2" ID opening
- Available coating: black anodized
- Conforms to MS-18014-1
Specifications and Technical Information
- Materials:
- Body: black anodized aluminum
- Stem: black anodized aluminum
- Nut: black anodized aluminum
Additional Information

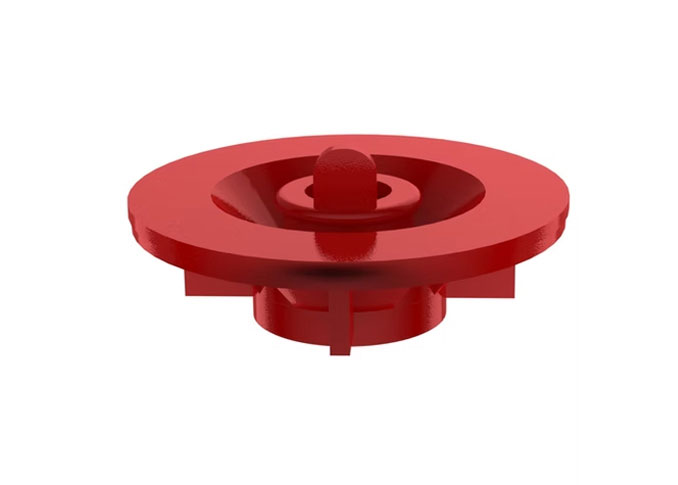

The Presto-Seal Vinyl Valve is a valve for the control of plain or corrosive gases and fluids.
Features and Benefits
- Push-pull system for easy operation
- Automatically self-sealing when used to evacuate containers
- Flush and inconspicuous when closed
- Available colors: red or clear
Specifications and Technical Information
- Materials:
- PVC
Additional Information

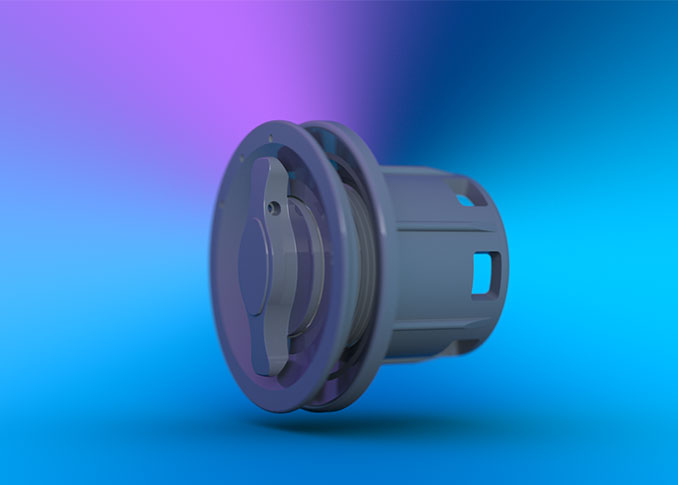

Boat Valves
Inflation, Deflation, and Pressure Control
Our boat valves are engineered for dependable performance in inflatable boats, rafts, slides, and other marine structures. The range includes compact fill and deflate valves with double-seal leak protection, automatic relief valves for maintaining safe internal pressure, and high-flow relief valves with anti-obstruction features for consistent operation—even when packed. Each valve is designed for durability, ease of use, and precise pressure management in demanding environments.

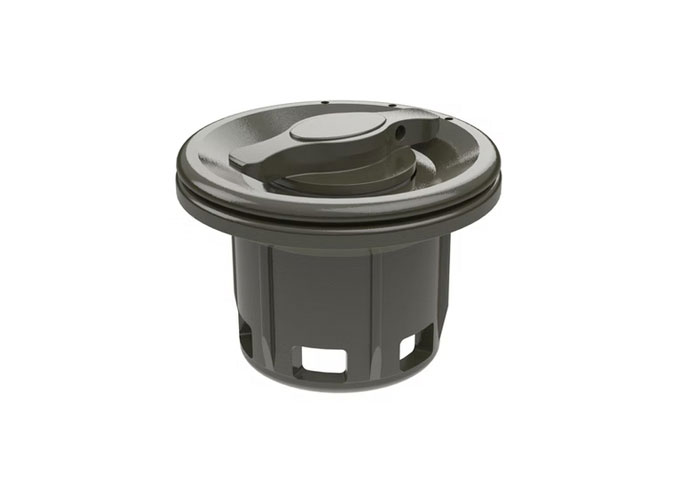

The 690NSBVG fill and deflate boat valve is a compact mechanical sealing valve.
Accessory Parts
- 697NSBV fill adapter
Features and Benefits
- Mechanical sealing
- Easy operation
- Easy to inflate and to deflate
- Double seal leak protection
- Available colors: gray and white
Specifications and Technical Information
- Materials:
- Body, stem, nut, and cap: acetal
- Spring: stainless steel
Additional Information

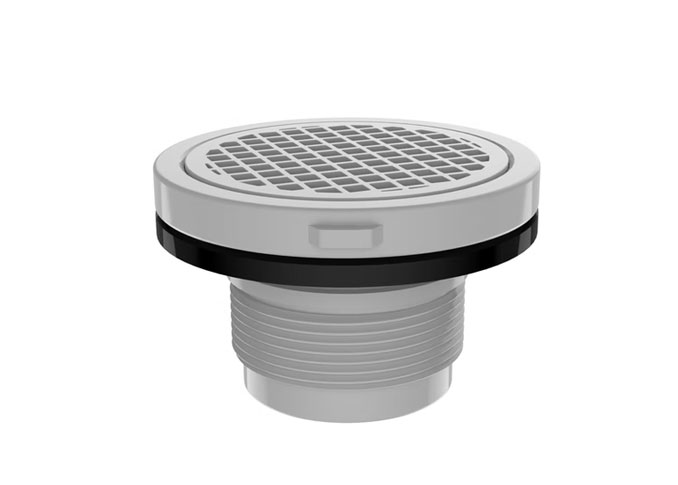

The 1080 automatic relief valve is a screw-in type relief valve designed for pressure relief applications in inflatable boats, rafts, slides, barriers and other inflatable structures.
Features and Benefits
- High flow rate
- Precise cracking and reseat
- Each valve is individually tested and calibrated
- Available in white
Specifications and Technical Information
- Materials:
- Body, cap, nut, screen: acetal
- Stem: aluminum
- Spring: stainless steel
- Available cracking pressures:
- 1.0 psig
- 2.0 psig
- 2.25 psig
- 3.25 psig
- 4.0 psig
Additional Information

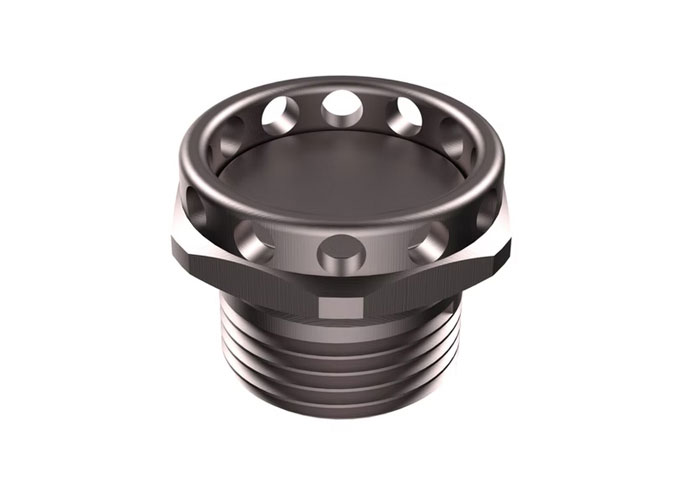

The 984xx0022 high-flow relief valve is designed for escape slides and other inflatable structures or boats.
Features and Benefits
- High flow
- Durability
- Large surface area of the relief cap allows for accurate 'crack' settings
- Anti-obstruction head: allows valve to be packed and to still open when inflated
Specifications and Technical Information
- Materials:
- Body: Aluminum
- Stem: Aluminum
- Spring: Stainless steel
- Available spring pressures:
- 0.05 psi
- 0.1 psi
- 0.15 psi
- 0.5 psi
- 2.5 psi
- 3.0 psi
- 6.0 psi
- Other pressures available on request (minimum orders apply)
Additional Information
Engineered for Safety and Performance
Our inflation products are built to meet the highest standards—trusted in critical applications where reliability is non-negotiable.
Reliable Inflation
Our inflation products are designed for live-saving precision in marine, aviation, and safety gear.
- Reliable inflation for life vests, rafts, and safety devices
- Manual and automatic activation options
- Corrosion-resistant materials
- Compact and lightweight designs
- Meets international safety standards
Technical Information
| Materials | Body - Polyurethane Internal Components - Stainless Steel Flanges - Vinyl |
| Configurations | Manual Inflators Automatic Inflators Oral Inflation Tubes Right-Angle Connectors Manifolds |
| Valve Sizes | 3/8" and 1/2" Threaded CO2 Cylinder Compatibility |
Important: All HR Medical Components are shipped bulk, non-sterile, and are single patient use medical device components requiring further processing (e.g. assembly, packaging, sterilization) before clinical use. The buyer is responsible for determining effects of processing/multiple usage on these components, the appropriateness of the component in the final application, and pre/post sterilization shelf life.
