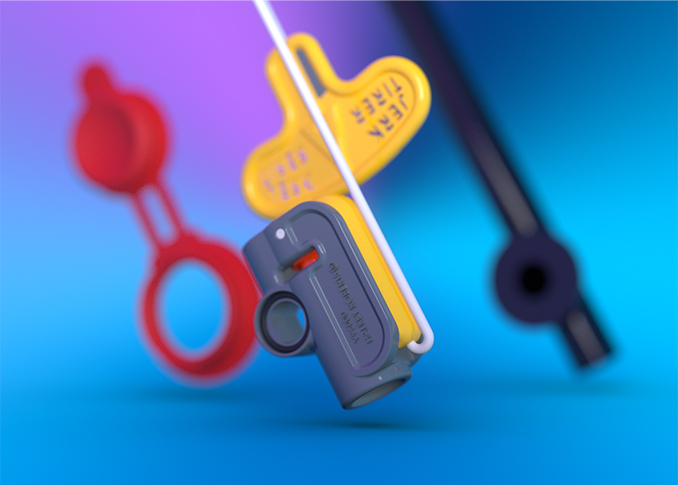

Inflation Products
Engineered for Safety, Performance, and Versatility
The extensive line of Halkey-Roberts inflation products is engineered for performance, safety, and versatility across medical, marine, and recreational applications. From manual and automatic inflators to oral inflation assemblies, valves, manifolds, and closures, each component is designed for reliable operation, secure sealing, and easy integration. With options for high-flow inflation, pressure relief, and compact or high-capacity configurations, our inflation systems deliver dependable solutions.
Manual/Automatic Inflators
Long Service Life
The Halkey-Roberts line of manual and automatic inflators is engineered to meet the diverse needs of aviation, marine, and personal flotation device applications. Designed for reliability, ease of use, and long service life, these inflators offer a range of activation methods—including manual-only, manual/automatic, and compact options—while supporting various CO2 cylinder sizes and lanyard configurations. Whether for recreational or commercial use, our inflators deliver dependable performance.

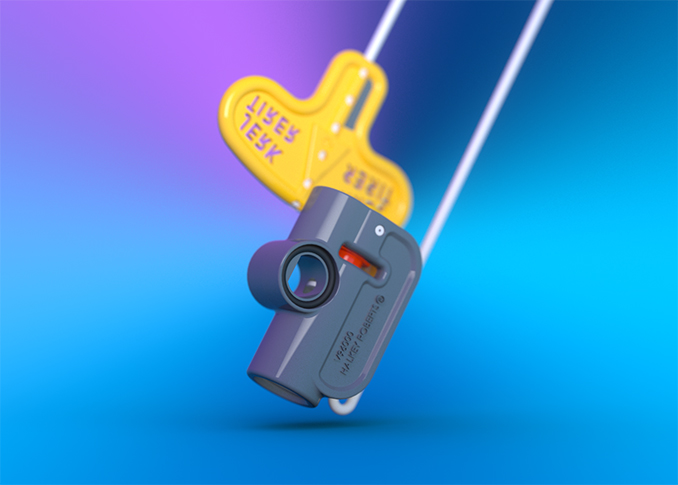

The 3F Single-Point Manual Inflator is designed for life vests that require manual activation only. Featuring a compact design and single-point status indicator, it delivers reliable performance for both recreational and commercial applications. Easy and cost-effective to rearm, it is compatible with multiple CO2 cylinder configurations and is available with standard or custom lanyard lengths.
Replacement Parts
- V90113 manifold O-ring (2)
- V87405S gasket for 3/8" thread
- V87405L gasket for 1/2" thread
Features and Benefits
- Manual activation design for dependable operation
- Single-point status indicator for quick visual inspection
- Easy and cost-effective to rearm
- Long service life: 3 years for recreational applications; 2 years for commercial applications
Specifications
- Materials
- Glass-reinforced nylon
- Marine-grade stainless steel metal components
- Compatibility
- Compatible with 3/8" threaded CO2 cylinders
- Compatible with 1/2" threaded CO2 cylinders
- Handle Options
- Pull-tab handle
- Lanyard Lengths
- 6.0" (15 cm)
- 13.5" (34 cm)
- Additional lanyard lengths available by special order (minimum purchase required)
- Certifications and Standards
- Meets UL 1191 requirements
- Meets CEN/ISO 12402-7 requirements
- UL recognized as a USCG Code 3F component
Additional Resources
- Part Drawings
- V96000xx Part Drawing
- V96000xxF Part Drawing (French)
- V96000xxx Part Drawing
- V96000xxxF Part Drawing (French)
- Technical Documentation
- V96000 3F Single-Point Manual Inflator Technical Data Sheet
- Introduction of Updated 3F Inflator into Retail Channels
- Instructions
- V96000 Rearm Instructions
- V90139 Universal Cylinder Holder Instructions
Service Information
Inflators Manufactured Before June 17, 2024
- English
- Service Bulletin (PDF)
- Service Bulletin Video
- French
- Service Bulletin (PDF)
- Service Bulletin Video

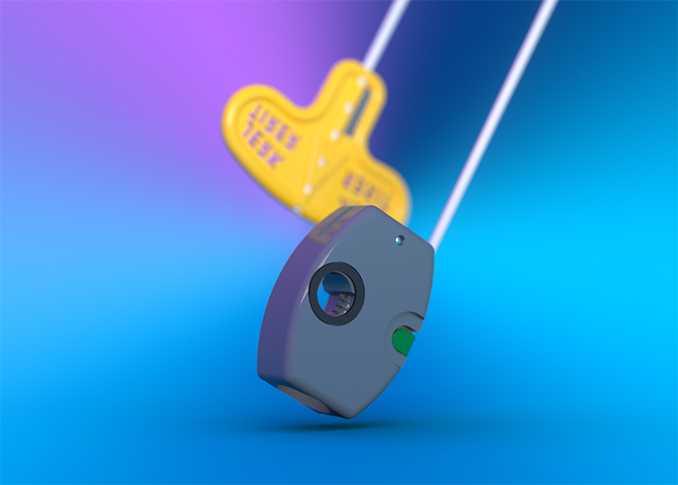

The 840 Series Manual Inflator is designed for life vests that require manual activation only in aviation and marine applications. Built for durability and versatility, it is available in configurations for both non-corrosive and marine environments, with multiple lanyard and color options to meet specific operational requirements.
Replacement Parts
- 8491AM top manifold gasket
- 8492AM bottom manifold gasket
- 849AM gasket for 3/8" thread
- 849AML gasket for 1/2" thread
- 8451AMAG green lock clip
- 8451AMA red lock clip
- 8452AM red lock pin
- V85006 green lock pin
Features and Benefits
- Manual activation design
- Suitable for aviation and marine applications
- Durable construction for demanding environments
- UL recognized for use on approved life vest systems
Specifications
- Materials
- Glass-reinforced nylon
- Marine-grade stainless steel components
- Electroless nickel-plated brass components
- Colors
- Black body for non-corrosive environments
- Gray body for marine environments
- Handle Options
- Ball pull handle
- Pull-tab handle
- Breakaway pull handle
- No pull handle
- Lanyard Lengths
- 3.0 (8 cm)
- 4.0 (10 cm)
- 4.5 (11 cm)
- 5.0 (13 cm)
- 5.5 (14 cm)
- 6.0 (15 cm)
- 7.0 (18 cm)
- 8.0 (20 cm)
- 10.0 (25 cm)
- 13.5 (34 cm)
- Additional lanyard lengths available by special order (minimum purchase required)
- Certifications and Standards
- Meets UL 1191 requirements
- Meets CEN/ISO 12402-7 requirements
- UL recognized as a USCG Code 6F component
Additional Resources
- Part Drawings
- 840AMUxxxx Part Drawing
- 840AMUx Part Drawing (UL Recognized Without Lanyard/Tab)
- 840BAMxSEP4 Part Drawing (Stainless Steel)
- 840AMxxxx Part Drawing
- 840AMxSxxx Part Drawing
- 840xBIx Part Drawing (Breakaway)
- Technical Documentation
- 840 Series Manual Inflator Technical Data Sheet
- Instructions
- 840 Rearm Instructions (English)
- 840 Rearm Instructions (French)
- 840 Rearm Instructions (Spanish)
- V90139 Universal Cylinder Holder Instructions

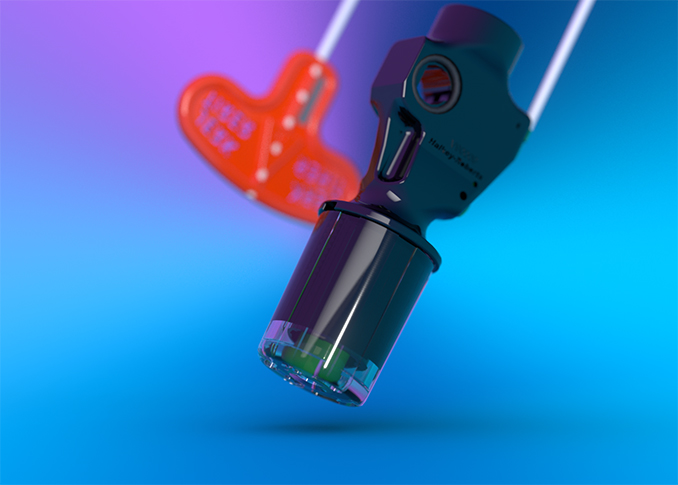

The Alpha Inflator is designed for life vests that require automatic inflation upon water immersion with manual backup activation. Engineered for reliable performance in demanding environments, it features enhanced splash and humidity resistance and a five-year service life. Compatible with multiple CO2 cylinder configurations, it supports a wide range of life vest applications and is available with a range of lanyard lengths.
Replacement Parts
- V90113 manifold o-ring (2)
- V87405S gasket for 3/8" thread
- V87405L gasket for 1/2" thread
- V90124 indicator clip
- V80040 bobbin
- V85201MY manual cap
- V90125YMK manual cap
Assembly Tooling
- D830AO sealing die
Features and Benefits
- Manual activation with automatic inflation upon water immersion
- Enhanced splash- and humidity-resistant design
- Five-year service life
- Tested to meet 1F inflator humidity-resistance requirements
Specifications
- Materials
- Glass-reinforced nylon
- Marine-grade stainless steel metal components
- Compatibility
- Compatible with 3/8" threaded CO2 cylinders
- Compatible with 1/2" threaded CO2 cylinders
- Handle Options
- Ball pull handle
- Pull handle
- No pull handle
- Lanyard Lengths
- 4" (10 cm)
- 6" (15 cm)
- 24" (61 cm)
- Certifications and Standards
- Meets UL 1191 requirements
- Meets CEN/ISO 12402-7 requirements
- UL recognized as a USCG Code 6F component
Additional Resources
- Part Drawings
- V90000xTxxB Part Drawing
- V90000xxAxB Part Drawing
- V90000xTFxxB Part Drawing
- V90000xN135B Part Drawing
- Technical Documentation
- V90000 Alpha Manual/Automatic Inflator Technical Data Sheet
- Instructions
- V90000 Rearm Instructions (English)
- V90000 Rearm Instructions (French)
- V90000 Rearm Instructions (Spanish)
- V80040 Bobbin Instructions for Use
- V90139 Universal Cylinder Holder Instructions
- V90125YMK Manual Cap Conversion
- V90000 Manual Conversion Instructions (English)
- V90000 Manual Conversion Instructions (French)
- V90000 Manual Conversion Instructions (Spanish)

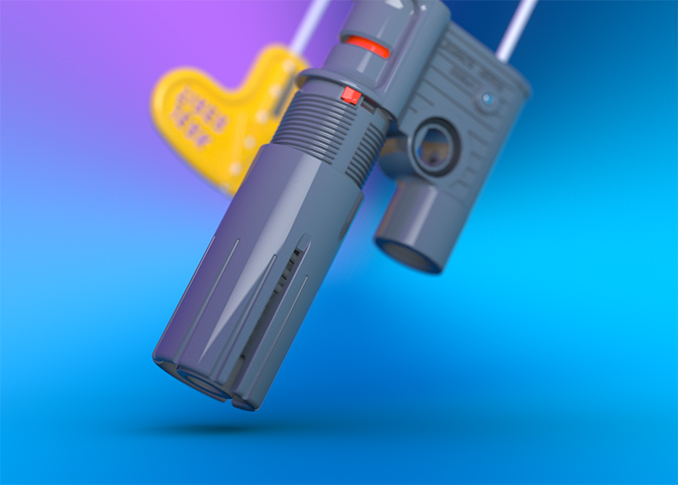

The Hydro 1F Inflator is designed for life vests that require both manual activation and automatic inflation upon water immersion. Built for durability and dependable performance, it offers splash and humidity resistance, a single-point status indicator, and a five-year service life. Easy to rearm and maintain, it is compatible with multiple CO2 cylinder configurations and is available with standard or custom lanyard lengths.
Replacement Parts
- V90113 manifold o-ring (2)
- V87405S gasket for 3/8" thread
- V87405L gasket for 1/2" thread
- V80040 bobbin
Features and Benefits
- Manual activation with automatic inflation upon water immersion
- Splash- and humidity-resistant design
- Single-point status indicator for quick visual inspection
- Easy and cost-effective to rearm
- Five-year service life
Specifications
- Materials
- Glass-reinforced nylon
- Marine-grade stainless steel metal components
- Compatibility
- Compatible with 3/8" threaded CO2 cylinders
- Compatible with 1/2" threaded CO2 cylinders
- Handle Options
- Pull handle
- No pull handle
- Lanyard Lengths
- 4" (10 cm)
- 6" (15 cm)
- 13.5" (34 cm)
- Free length without pull tab
- Additional lanyard lengths available by special order (minimum purchase required)
- Certifications and Standards
- Meets UL 1191 requirements
- Meets CEN/ISO 12402-7 requirements
- UL recognized as a USCG Code 1F component
Additional Resources
- Part Drawings
- V95000xxB Part Drawing
- V95000xxBF Part Drawing (French)
- Technical Documentation
- Hydro 1F Manual/Automatic Inflator Technical Data Sheet
- Instructions
- V95000_CONV Rearm Instructions
- V80040 Bobbin Instructions for Use
- V90139 Universal Cylinder Holder Instructions
- V95000 Manual Conversion Rearm Instructions
- V95000xxBM Manual Conversion Labeling
- V95000xxBMF Manual Conversion Labeling (French)
- Status Indicator Reset Instructions Video (English)
- Réinitialisation de l'indicateur d'état - Instructions vidéo (French)

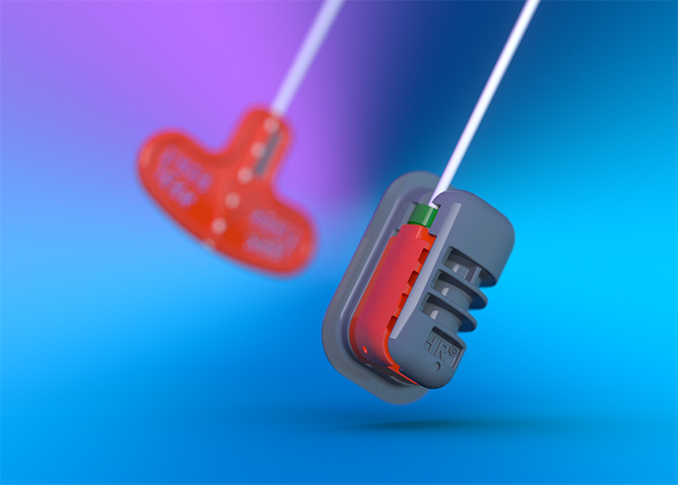

The V87000 Mini Inflator is designed for life-saving equipment where compact size and low weight are critical. Providing reliable manual inflation performance in a lightweight package, it supports aviation applications while maintaining compatibility with common life vest fabrics and CO2 cylinder configurations.
Replacement Parts
- V87400 lock clip
- 849AM gasket for 3/8" thread
- 849AML gasket for 1/2" thread
Assembly Tooling
- SD87000 sealing die
- TV87110 pivot pin removal tool
Features and Benefits
- Compact and lightweight design
- Manual activation operation
- Designed for aviation applications
- Compatible with FAA-approved fabrics
- Compatible with commonly used marine fabrics
Specifications
- Materials
- Polyether-based construction
- Polyurethane body
- Compatibility
- Compatible with 3/8" threaded CO2 cylinders
- Compatible with 1/2" threaded CO2 cylinders
- Colors
- Gray body for 3/8" thread
- Tan body for 1/2" thread
- Handle Options
- Pull handle
- No pull handle
- Lanyard Lengths
- 4" (10 cm) in gray or tan
- Certifications and Standards
- Meets FAA TSO-C13F requirements
Additional Resources
- Part Drawings
- V870xxxx Part Drawing
- Technical Documentation
- Mini Inflators – FAA Technical Data Sheet

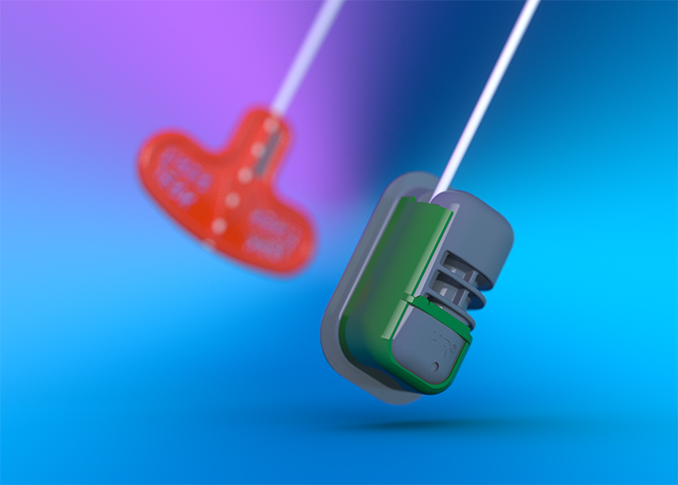

The V87000 Mini Marine Inflator is designed for marine applications where corrosion resistance, compact size, and low weight are essential. Featuring stainless steel components for enhanced durability in harsh marine environments, it delivers reliable manual inflation performance in a lightweight, low-profile design.
Replacement Parts
- V87400M lock clip
- 849AM gasket for 3/8" thread
- 849AML gasket for 1/2" thread
Assembly Tooling
- SD87000 sealing die
- TV87110 pivot pin removal tool
Features and Benefits
- Compact and lightweight design
- Manual activation operation
- Corrosion-resistant construction for marine environments
- Designed for integration with commonly used marine fabrics
Specifications
- Materials
- Polyether-based construction
- Polyurethane body
- Stainless steel components
- Compatibility
- Compatible with 3/8" threaded CO2 cylinders
- Compatible with 1/2" threaded CO2 cylinders
- Colors
- Gray body for 3/8" thread
- Tan body for 1/2" thread
- Handle Options
- Pull handle
- No pull handle
- Lanyard Lengths
- 4" (10 cm) in gray or tan
- 5" (13 cm) in tan
- Certifications and Standards
- Meets UL 1191 requirements
- Meets ISO 12402-7 requirements
Additional Resources
- Part Drawings
- V870xxM Part Drawing
- Technical Documentation
- Mini Inflators – Marine Configuration Technical Data Sheet

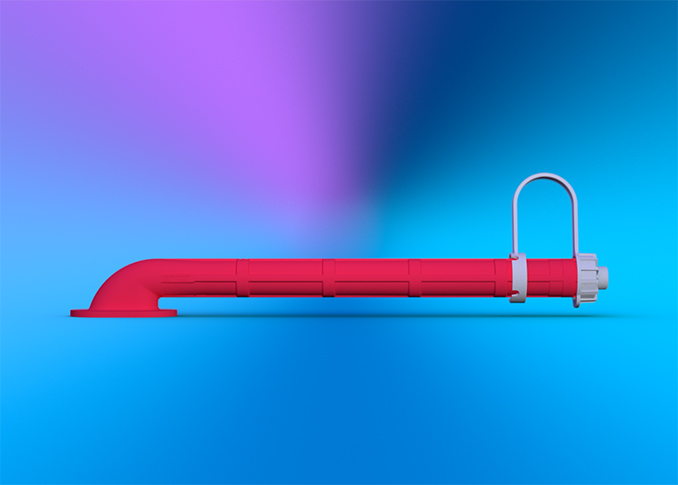

Oral Inflation Tubes
Reliable Manual Inflation
Our Halkey-Roberts line of oral inflation tubes is designed to provide dependable manual inflation for inflatable products, safety equipment, and flotation devices. Available in a variety of tube lengths, diameters, and configurations, including tube-end valve assemblies, elbow tube assemblies, swept tube designs, and capped valve assemblies, they offer flexibility for a wide range of application requirements. Select models feature integrated valves and pressure-relief functions to support controlled inflation and overpressure protection, while high-flow designs help enable efficient oral inflation. Certain product families are engineered for durable attachment to films and coated fabrics through specialized flange designs that promote strong, reliable bonding. Constructed from durable materials including polyether-based polyurethane and other engineered components, these products are designed for reliable performance in demanding environments. Select configurations are 100% tested for crack pressure and leaks, and certain product families are UL recognized for use on USCG-approved life vests and meet CEN/ISO 12402-7 requirements.

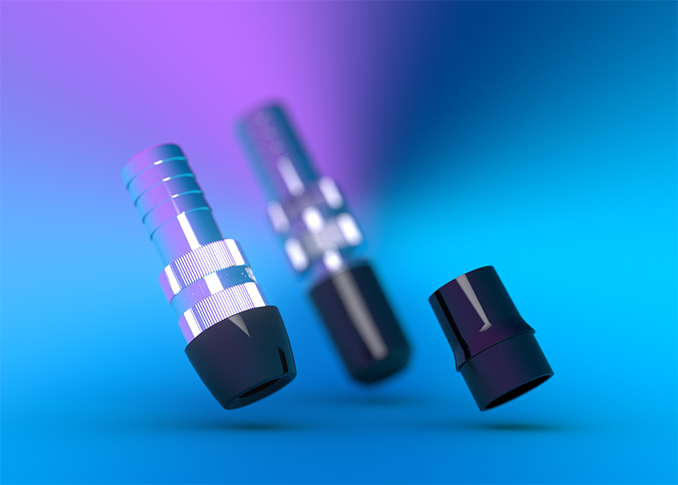

Oral Inflation Valves
Controlled Inflation and Pressure Relief
The Halkey-Roberts line of oral inflation valves is designed to provide reliable inflation control and pressure management for inflatable products, flotation devices, and other safety-critical applications. Available in both inflation and relief valve configurations, they support a wide range of opening and cracking pressures to accommodate diverse performance requirements. These valves may be installed directly into compatible oral tubes or mounted in flanges, offering flexibility for both inflation and pressure-relief functions. Select models feature high-flow, push-to-open designs for efficient oral inflation, while relief valve options help provide overpressure protection. Constructed from durable materials including acetal, aluminum, brass, silicone, and stainless steel, oral inflation valves are engineered for dependable performance across a range of operating environments and application needs.
Manifolds
Efficient Gas Flow Management
Inflation product manifolds are designed by Halkey-Roberts to provide efficient gas flow, reliable sealing, and secure integration within inflatable systems. Available in multiple configurations, including flanged, capped, and molded designs, they support consistent inflation performance while helping minimize potential leak paths. Their unitized construction promotes stability and durability, while select models incorporate patented valve technology for low-pressure activation and efficient transfer of CO2 from inflation cylinders. Designed for compatibility with urethane-coated inflation chambers, these manifolds support seamless integration and long-term performance in demanding applications. Self-aligning cap nut designs help prevent cross-threading, while corrosion-resistant engineered plastic components enhance durability and reliability. Constructed from materials including polyurethane, brass, glass-filled nylon, silicone, and acetal components, select configurations meet UL 1191 requirements and are 100% leak and crack tested to help ensure dependable operation.
Inflation Valves
Presto Seal Self-Sealing Inflation Control
Halkey-Roberts inflation valves provide a simple and reliable solution for controlling plain or corrosive gases and fluids in inflatable products and fluid management applications. Featuring a push-to-inflate, self-sealing design, they support convenient operation while helping maintain system integrity during inflation and evacuation. Their flush profile creates a clean, unobtrusive appearance when closed, making them well suited for applications where a low-profile valve is desired. Available in red or clear vinyl, inflation valves offer dependable performance and ease of use across a variety of inflation and fluid-control applications.

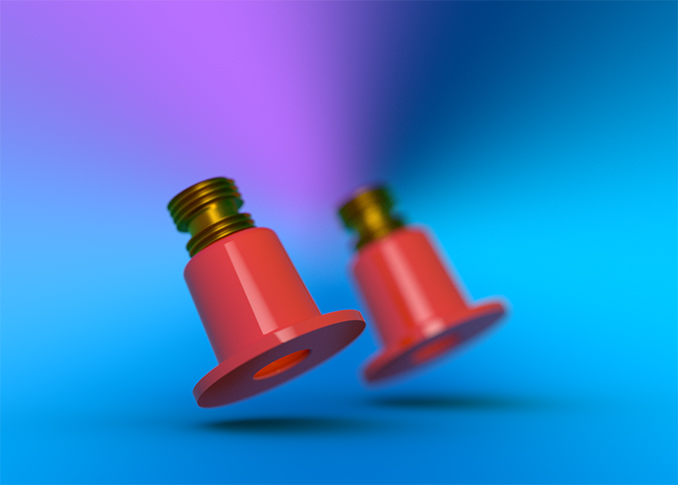

Insertion Valves
Simple Twist-to-Seal Operation
Insertion valves provides a compact and dependable solution for inflation and air retention applications. This line of Halkey-Roberts valves is available in multiple configurations, including standard, threaded, shank-style, flanged, and extended-body designs. They offer flexibility for a variety of product and installation requirements. Designed for electronic sealing or solvent bonding to PVC film, these valves support secure integration while maintaining reliable performance. Their simple twist-to-seal mechanism enables easy operation and dependable sealing, making them a practical choice for a wide range of inflatable applications.

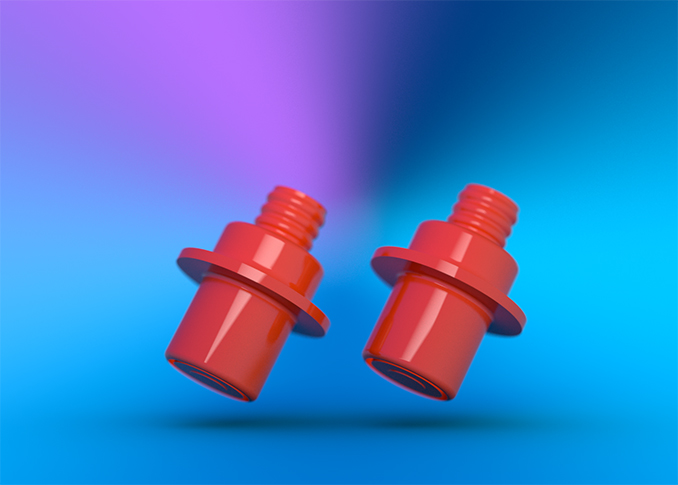

Push/Pull Valves
Easy Manual Inflation
Halkey-Roberts push/pull valves provide a simple and reliable solution for manual inflation and deflation applications. Designed for easy operation, they can be opened, inflated, and closed entirely by mouth while also accommodating standard pumps and service station hoses. Their low-profile design minimizes protrusion from the surface, helping maintain a compact and streamlined appearance. Available in PVC and polyurethane constructions, push/pull valves offer dependable performance and convenient inflation control across a range of applications.
Inflation Closures
Secure Flow and Closure Control
Halkey-Roberts inflation closures are designed to provide reliable sealing, flow control, and drainage for inflatable products and fluid management applications. Available in a variety of configurations, including inflation check valves, closure flanges, closure sleeves, and drain closures, they support efficient inflation, deflation, and fluid transfer in applications ranging from disposable medical bags and inflatable covers to high-volume recreational inflatables. Select models incorporate integrated flapper check valves that automatically help prevent reverse flow while maintaining efficient inflation and exhaust performance. High-capacity designs support rapid exhaust and drainage when fast flow rates are required. Constructed from durable vinyl and PVC materials, including select medical-grade options, inflation closures offer dependable performance and versatility across a wide range of inflatable systems.
Boat Valves
Reliable Inflation & Deflation
Our Halkey-Roberts line of boat valves is designed to provide dependable inflation, deflation, and air retention for inflatable boats, rafts, and other inflatable structures. Featuring a compact mechanical sealing design, they offer easy operation while supporting efficient inflation and deflation when needed. Double-seal leak protection helps maintain air retention and system integrity, while durable acetal construction and available UV-resistant configurations support long-term performance in demanding environments. Available in grey or white color options, boat valves provide a reliable and easy-to-use solution for inflatable applications requiring secure sealing and dependable operation.
Engineered for Safety and Performance
Our inflation products are built to meet the highest standards—trusted in critical applications where reliability is non-negotiable.
Reliable Inflation
Our inflation products are designed for live-saving precision in marine, aviation, and safety gear.
- Reliable inflation for life vests, rafts, and safety devices
- Manual and automatic activation options
- Corrosion-resistant materials
- Compact and lightweight designs
- Meets international safety standards
Technical Information
| Materials | ABS Polyurethane PVC Polypropylene Nylon Acetal Vinyl Brass |
| Configurations | Manual/Automatic Inflators Oral Inflation Tubes Oral Inflation Valves Manifolds Inflation Valves Insertion Valves Push/Pull Valves Inflation Closures Boat Valves |
| CO2 Cylinder Thread Sizes | 3/8" and 1/2" Threaded CO2 Cylinder Compatibility |
Important: All HR Medical Components are shipped bulk, non-sterile, and are single patient use medical device components requiring further processing (e.g. assembly, packaging, sterilization) before clinical use. The buyer is responsible for determining effects of processing/multiple usage on these components, the appropriateness of the component in the final application, and pre/post sterilization shelf life.
