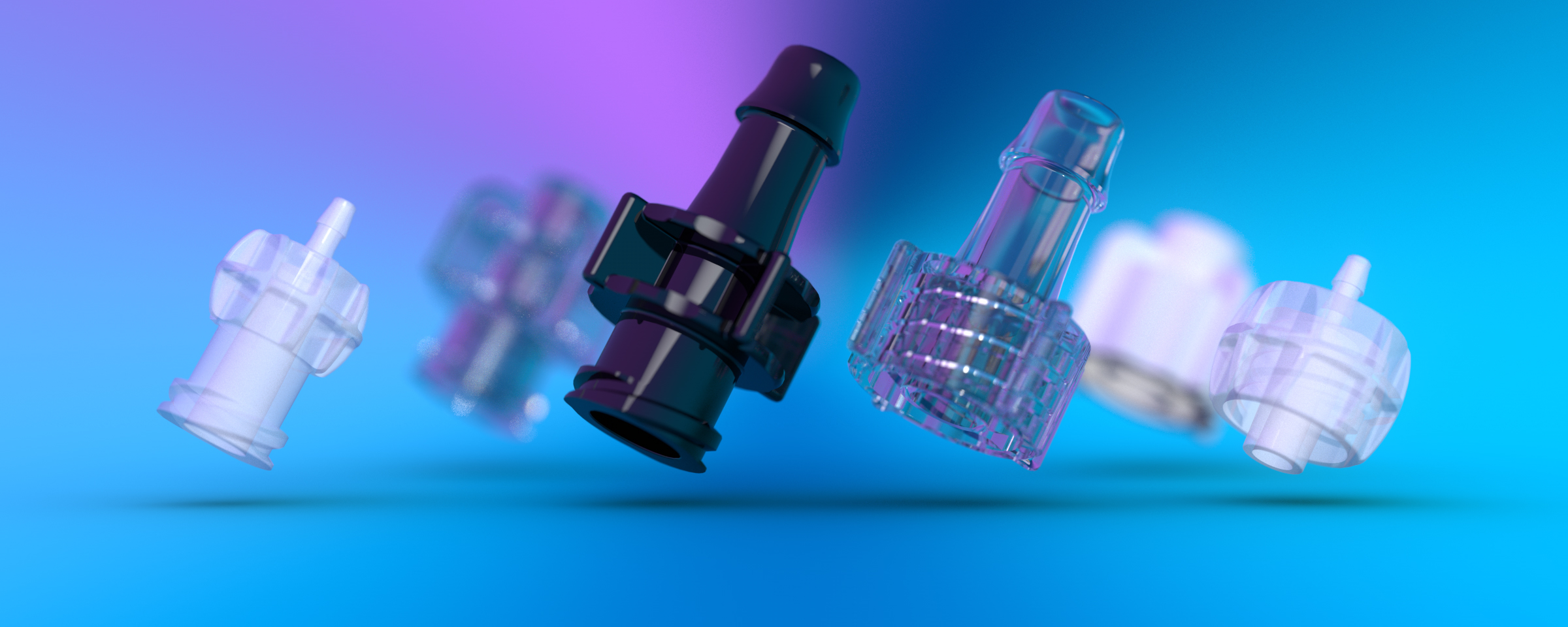

Tapered Seal Connectors
Shop Now »

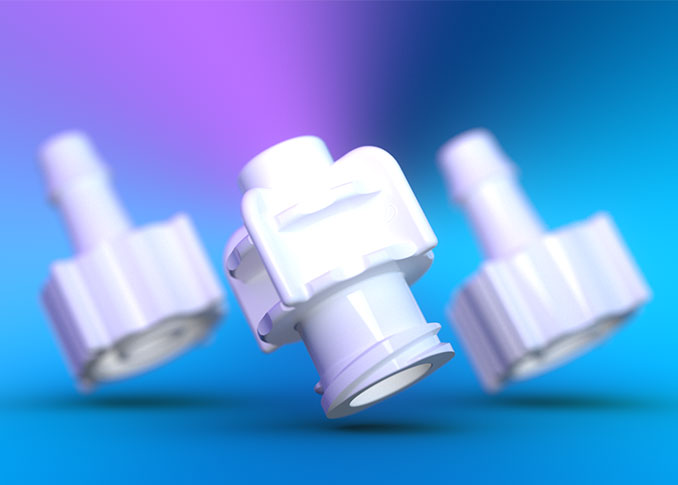

Luer Alternatives
Small-Bore Connectors
TSC Series products offer the reliability, convenience, and ease of use of luer fittings in a design that cannot be interconnected with conventional luers to avoid tubing misconnections. These luer alternatives are available in sizes to fit 1/8" (3.2 mm) and 3/16" (4.8 mm) ID flexible tubing. TSC Series connectors feature an ergonomic grip and a reliable conical seal. The 500 Series single barbs offer better performance compared to multi-barb designs, and they are compatible with PVC, polyurethane, rubber, and TPE tubing.
Prevent Tubing Misconnections
Tapered seal connectors provide a secure and reliable conical seal, ensuring efficient fluid transfer without the risk of leakage.
- Non-luer, small-bore, single-barb connectors
- Reliable conical (tapered) seal
- Ergonomic grip for ease of use
- 15% higher flow capacity than conventional luers
- Cannot be interconnected with conventional luers
Technical Information
| Materials | Polypropylene that Satisfies USP Class VI Criteria |
| Barb Sizes | 500 Series |
| Fits Tubing IDs | 1/8" (3.2 mm) 3/16" (4.8 mm) |
| Sterilization | Autoclave EtO Compatible Gamma Radiation Stable |
| Tubing Types | PVC Polyurethane Rubber Thermoplastic Elastomer (TPE) |
Custom Components
Whether it's a slight modification of one of our catalog components, a design that you need manufactured, or something completely unique that requires full product development, Nordson MEDICAL has the experience and proficiency to support your project from concept through full-scale manufacturing.
