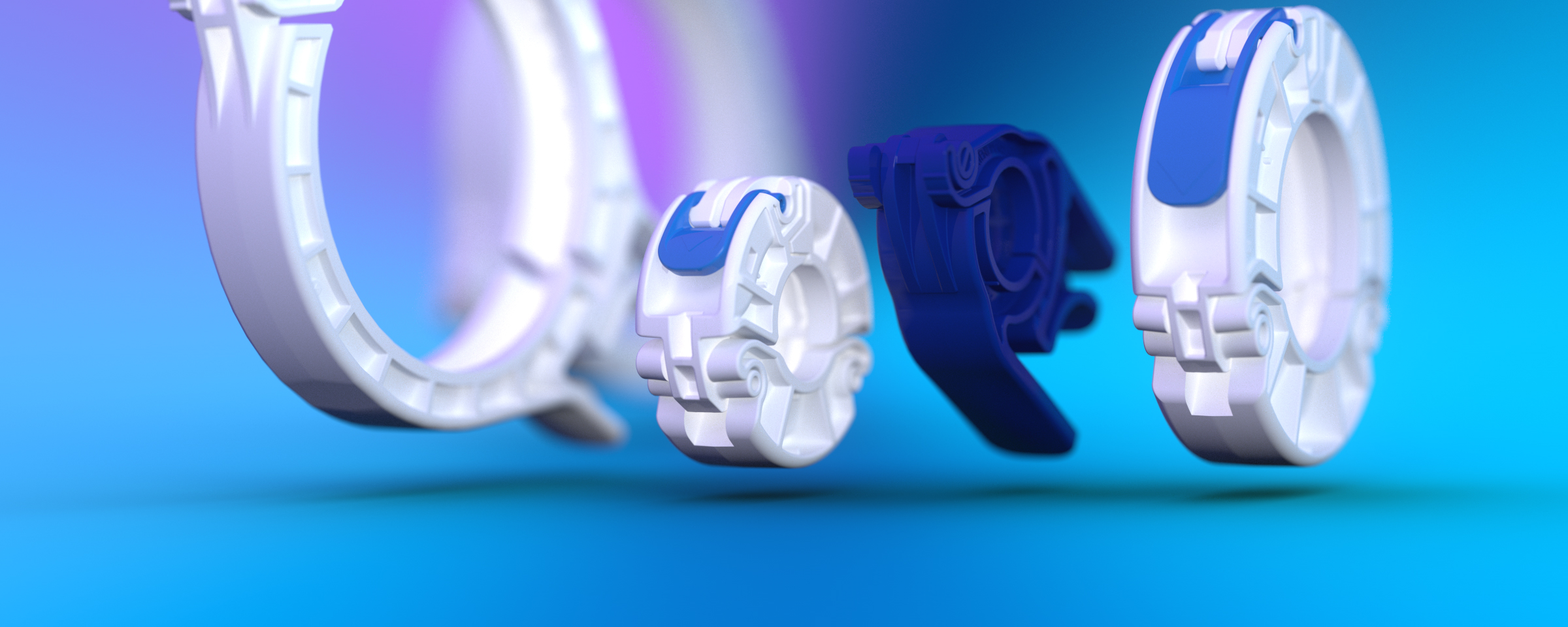

Plastic Union Clamps
State-of-the-Art Design Allowing for Easy Operation
The biopharmaceutical industry has made a strong move towards single-use technology, so Nordson MEDICAL has developed PharmaLok™ sanitary clamps to simplify the assembly process by making it effortless to securely attach sanitary fittings to bag ports and filters. PharmaLok™ clamps are ASME BPE compatible and fit 0.5" (12.7 mm) to 0.75" (19.0 mm), 1" (25.4 mm) to 1.5" (31.8 mm), 3" (76.2 mm), and 4" (101.6 mm) flanges. These clamps provide a significant advancement for the industry, as a number of existing solutions either require tools for closure or consist of multiple components, which turns what should be a simple operation into a difficult and awkward process.

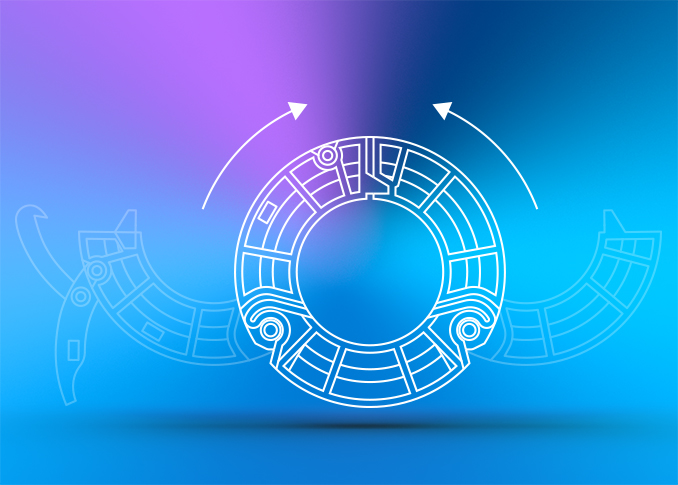

Easy Operation
No Tools Required
PharmaLok™ ZerO is designed for versatility, offering universal compatibility with a wide range of fittings and flanges. Its adaptive closure accommodates gasket and flange variations, ensuring a secure, reliable seal every time. The single-setting latch simplifies operation with a tool-free design that eliminates the need for torque checks or adjustments. Featuring a compact design with a nested latch and hinges, it eliminates protrusions while using up to 25% less material than traditional TC clamps. Clean manufacturing also means minimized particulate, making PharmaLok™ ZerO a cleaner, more advanced solution for biopharma applications.

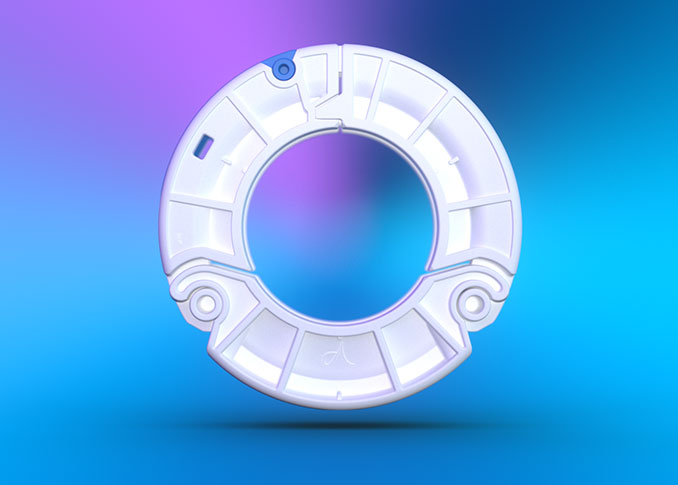

360° Compression
Secure Connections
PharmaLok™ ZerO sanitary clamps deliver uniform 360° compression, ensuring consistent sealing without compromising the integrity of the gasket. Clamps utilizing a single hinge may cause pinching, distortion, or gasket intrusion. Our innovative design ensures even pressure by triangulating pressure points to evenly disperse the compression load.

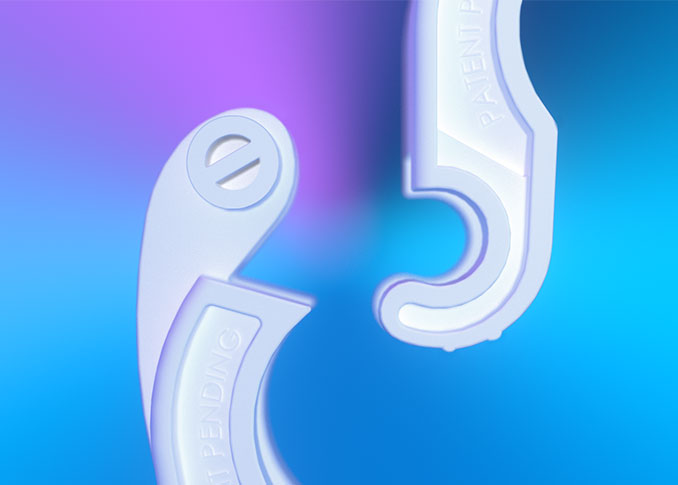

Round Hinges
Wide Opening Capability
The rounded hinges featured on all sanitary clamps enable users to fully open them to a greater angle, easing the insertion of both conforming and non-conforming fittings with ease, while also preventing accidental separation when fully extended.

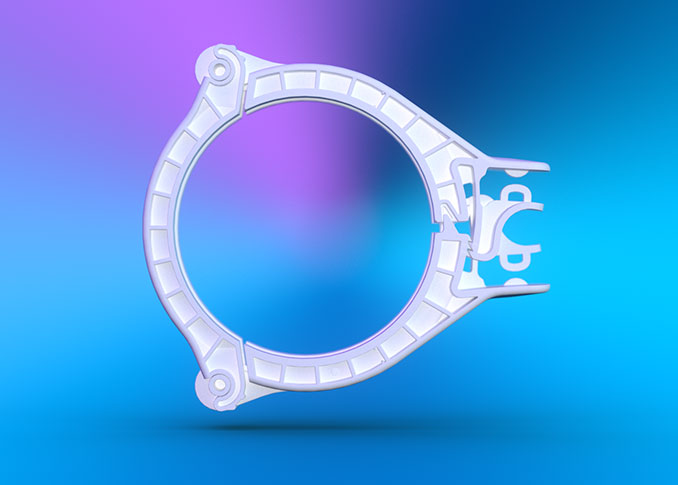

3" and 4" Sanitary Clamps
New to the PharmaLok™ Line
Nordson MEDICAL's 3" and 4" clamps maintain the trusted features our users have come to rely on, and the 4" clamp boasts a unique double-hinge mechanism.
Single-Use Systems
As a founding member of BPSA, Nordson MEDICAL has had insight into the needs of the biopharm industry. User-friendly solutions are increasingly demanded, and single-use systems have developed into an overwhelming market trend. Incorporating these factors into the PharmaLok™ line has resulted in an ideal solution for biopharm customers.
Do More with Your Pharmaceutical Development
PharmaLok™ clamps are specifically designed to meet the needs of busy pharmaceutical and bioprocessing laboratories and work with Nordson MEDICAL's sanitary fitting mini and maxi flanges, as well as related caps and gaskets.
- 360° uniform compression ensures consistent sealing
- Connects both plastic and stainless-steel fittings
- Easy-to-use, one-handed closure - no tools required in most cases
- Latch lockout holds standard cable ties
- ASME BPE 018 DT-7-1 and SIP/CIP compatible
Technical Information
| Materials | Glass-Filled Nylon Certified to USP Class VI and ISO 10993 |
| Sizes | 0.5" (12.7 mm) to 0.75" (19.0 mm) 1" (25.4 mm) to 1.5" (38.1 mm) 3" (76.2 mm) 4" (101.6 mm) |
| Sterilization | Autoclavable Up to 273° F (134° C) for a Maximum of 30 Minutes Gamma Radiation Up to 50 kGy X-Ray Sterilization Compatible Up to 50 kGy |
| Operating Temperature | Normal Operating Temperature -94° F (-70° C) to 140° F (60° C) Cryogenic Freezing to -112° F (-80° C) |
| Maximum Pressure | 80 psi - 100 psi |
