The First SUS Multiport Manifold in the Market
Simplified Use and Assembly

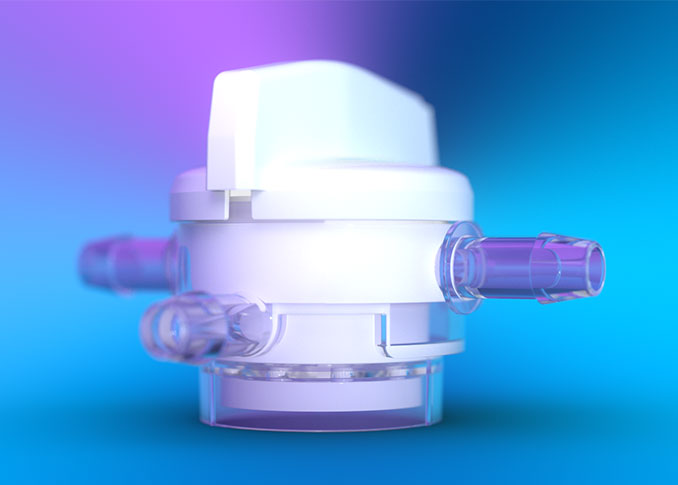

CylindraFLOW™ is the first all-in-one manifold for pharmaceutical and single-use biopharmaceutical fluid transfer applications. This revolutionary, patent-pending compact fitting not only saves space but also simplifies use and assembly with its innovative design. Featuring five ports in a single component, it eliminates the many leak points found in traditional stopcock and Y connector manifolds, making it ideal for downstream processing. Multiple bags can be easily filled from one large bag, with consistent flow maintaining steady pressure as it travels around the inner body of the part.
Polycarbonate Resin
CylindraFLOW™ manifolds are manufactured with a biocompatible polycarbonate resin that meets USP Class VI and ISO 10993 criteria, ensuring suitability for medical devices and pharmaceutical applications. The manifolds are stable under gamma radiation, compatible with EtO sterilization, and autoclavable.

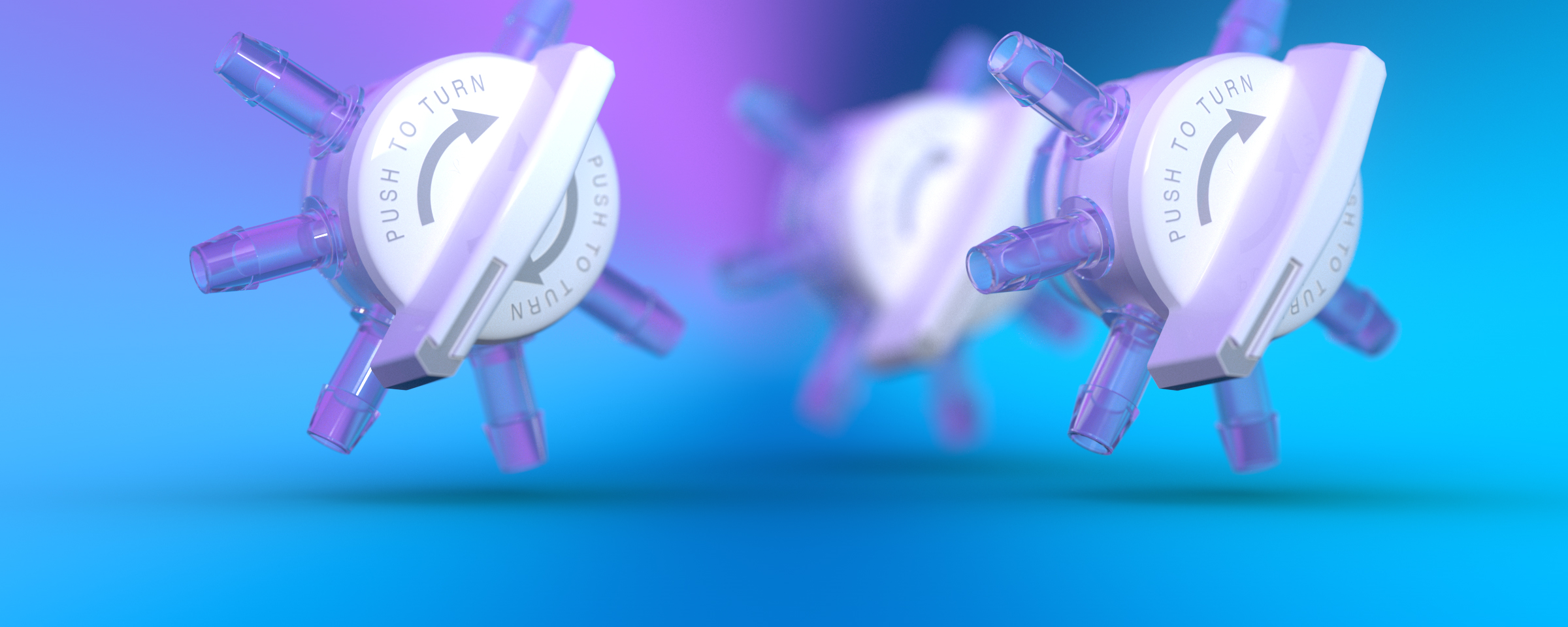

Push and Turn to Open Flow
The large flow selector, which firmly turns, features a lock-in-place mechanism and a clearly marked arrow to ensure the correct flow path and desired port utilization. This manifold offers a one-to-one relationship between the inlet port and the five available outlet ports, streamlining processing applications and enhancing reliability.
- Can accommodate up to 5 fluid lines
- Flow restricted to one port at a time
- No pressure drop as fluid moves around and through the ports
- Intuitive push-to-turn flow selector
- Easier to use and fewer leak points than stopcock and Y connector manifolds
- Leak tested for use in low pressure applications less than 15 psi
- Materials meet USP Class VI and ISO 10993 criteria
- Gamma radiation stable
- Can be daisy chained for additional ports
- Arrows to provide a clear indication of how to turn the flow selector and which port is in use
- Etched data code for easy access to product resources and material information
Technical Information
| Materials | Body and Flow Selector - Gamma Stable Polycarbonate Internal Spring - 316 Stainless Steel Gasket - Platinum-Cured Silicone |
| Barb Size | 600 Series |
| Fits Tubing IDs | 3/8" (9.5 mm) |
| Sterilization | Autoclave EtO Compatible Gamma Radiation Stable |
| Maximum Pressure | 15 psi (1.0 bar) Liquid Rated |
