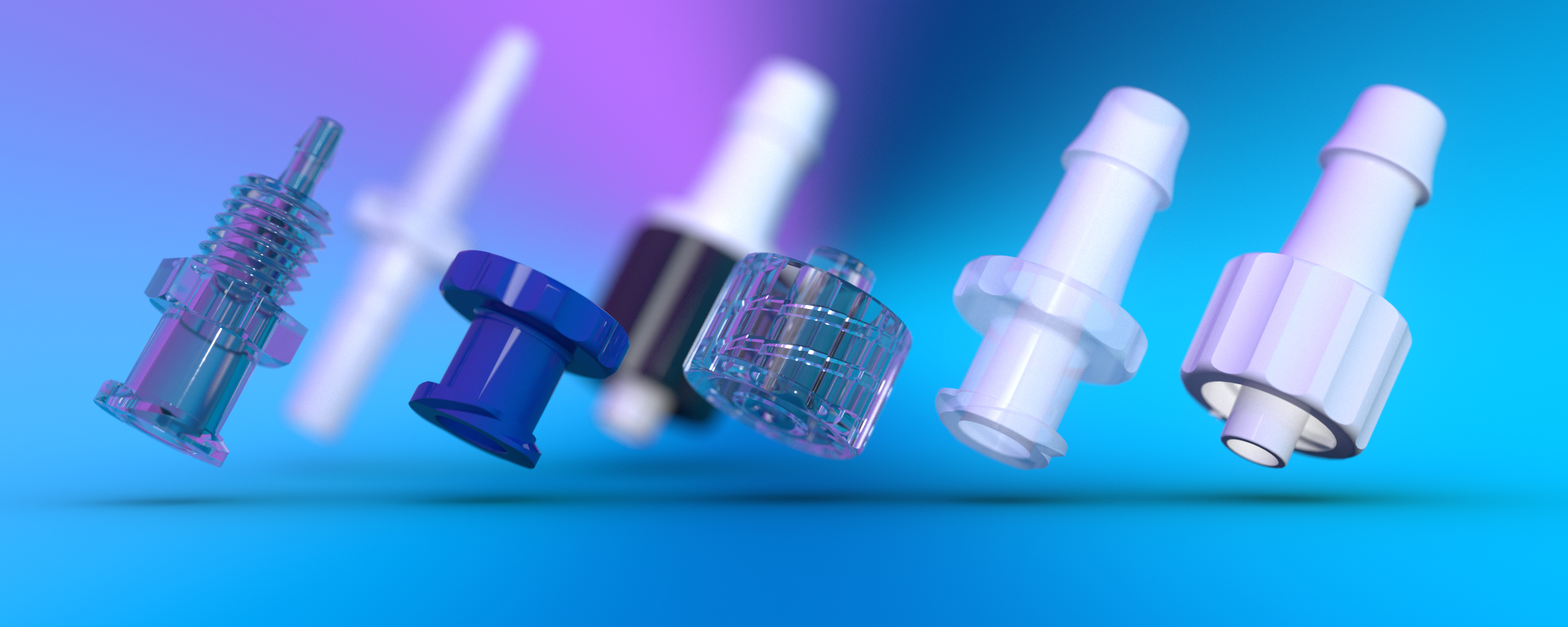

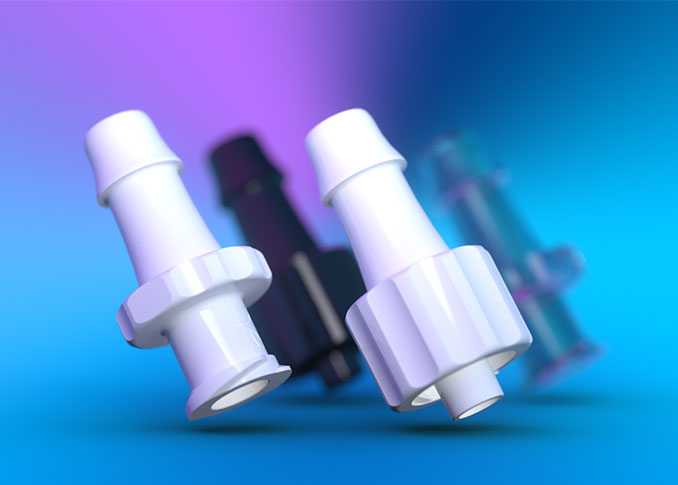

Male & Female Luers
Connectors, Adapters, and Accessories
Nordson MEDICAL offers designers worldwide the broadest selection of male luer and female luer fittings and connectors, luer adapters and luer accessories. Over 120 separate configurations are offered in nylon, polypropylene, polycarbonate and PVDF, with many color and special material options available from stock or upon special order. Our Value Plastics line of male and female luers are available with tubing connections that fit many tubing materials ranging from 1/16" (1.6 mm) to 1/4" (6.4 mm) IDs, with threaded ends and panel mount versions also available.

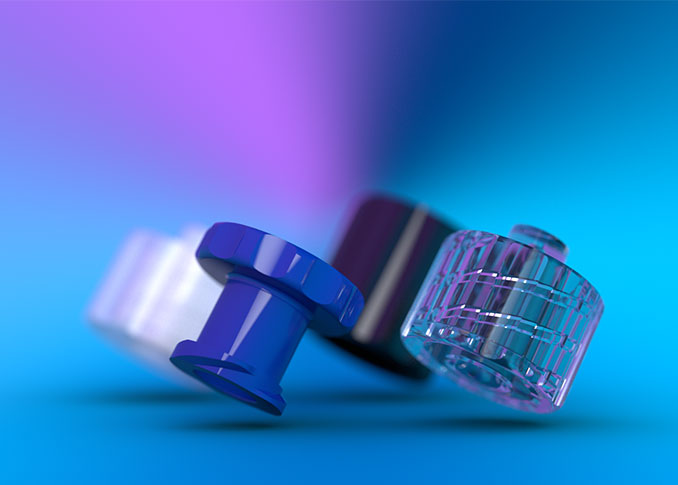

Luer-Lock Connectors
Female Fittings
Luer-lock connectors (female) are joined by means of a tabbed hub on the female fitting that screws into threads in a sleeve on the male fitting and attaches securely. Male luer lock connectors are available with integral lock rings or with rotatable features to allow you to position the tubing before assembly. This locking mechanism is used for applications that require a secure connection.
Luer Slips
Threadless Fittings
Luer-slip connectors simply conform to luer taper dimensions and are pressed together and held by friction (they have no threads). This mechanism is used for applications such as priming and flushing.

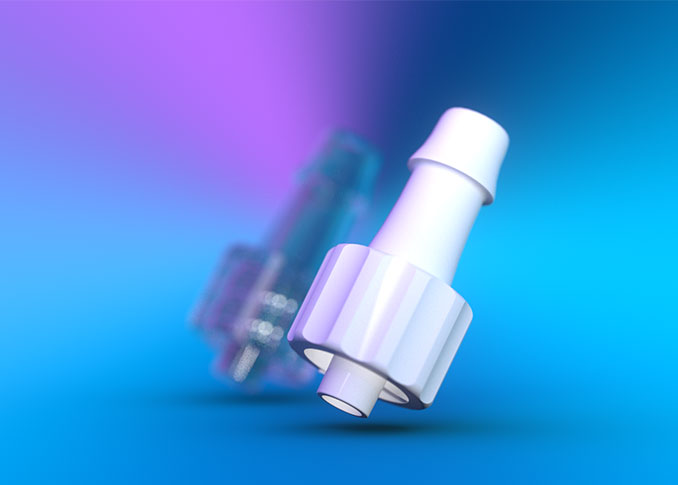

Luer Tapers
Make Secure Connctions
The 6% tapered cone luer standard, developed in 1896, remains a global standard for medical devices and laboratory instruments due to its reliability and cost-effectiveness. Nordson MEDICAL's Value Plastics line of luer fittings are integral to this standardized system, offering secure leak-proof connections for both gas and fluid applications, with special attention to eliminating parting lines (on luer fittings featuring a barb) for leak-free tubing unions.

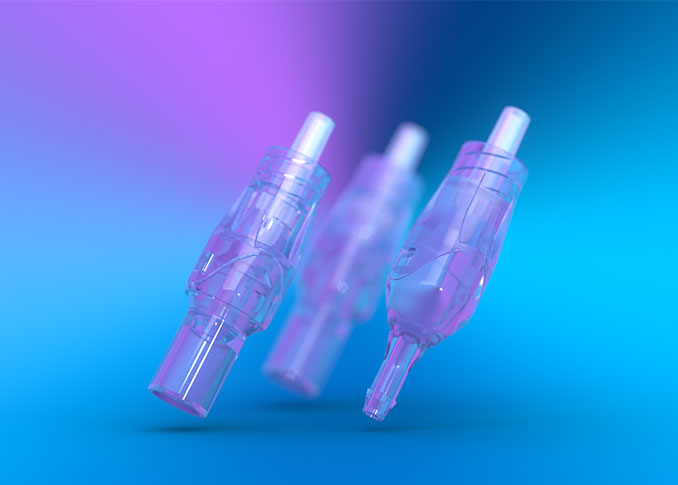

Male Luer Valves
Part of the Halkey-Roberts Line of Valves
The Halkey-Roberts line of male luer valves (MLV) offers high-performance, leak-free solutions for flushing, drainage, IV therapy, and home healthcare. Available with tube ends, barbs, or female luer locks, each MLV is designed for seamless integration into medical sets and provides reliable access to female luer connectors or luer-activated valves. These valves feature a high-flow design that eliminates the need for clamping, while their gamma-resistant, ISO 10993-compliant materials are DEHP-free and not made with natural rubber latex.

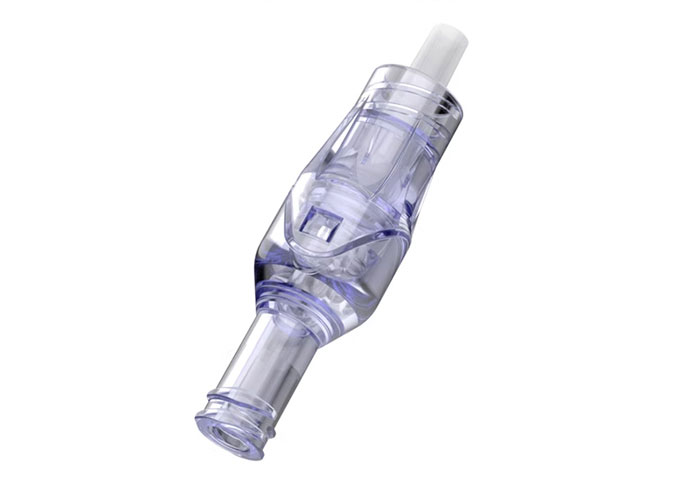

These male luer valves are ideal for flushing and drainage applications, IV solutions, and home healthcare. The MLV is designed to attach directly to tubing during their set assembly. The valves can be used to access a mating female luer connector or luer activated valve.
Features and Benefits
- Eliminates dripping and leakage when disconnected - no clamping required
- High flow rates
- Compatible with open female luers and valves
- Incorporates proven valve technology
- All materials are gamma resistant, ISO 10993 compliant, DEHP-free, and not made with natural rubber latex
Specifications and Technical Information
- Materials and available colors:
- Swabable stem: Clear silicone
- Luer valve body & base: Clear polycarbonate
- Luer & retainer: Clear polyproylene
- Tubing port designed for 0.160" (4.0/4.1 mm) OD tubing
- Luer compatible with ISO 594-2
Additional Information

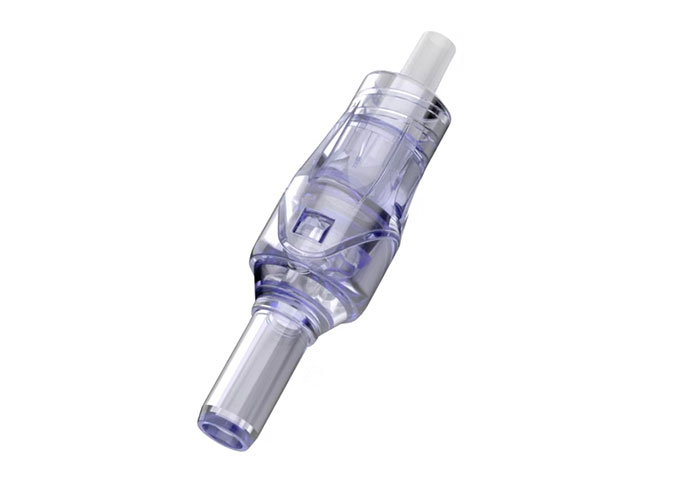

This high-flow valve provides a secure, leak-free connection for flushing, drainage, IV therapy, and home healthcare. Designed to connect directly to luer lock syringes or male luer lock connectors, it supports efficient fluid management with trusted performance and safety.
Features and Benefits
- Eliminates dripping and leakage when disconnected - no clamping required
- High flow rates
- Compatible with a mating open female luer connector or luer activated valve
- Incorporates proven valve technology
- All materials are gamma resistant, ISO 10993 compliant, DEHP-free, and not made with natural rubber latex
Specifications and Technical Information
- Materials and available colors:
- Swabable stem: Clear silicone
- Luer valve body & base: Clear polycarbonate
- Luer & retainer: Clear polyproylene
- Luer compatible with ISO 594-2
Additional Information

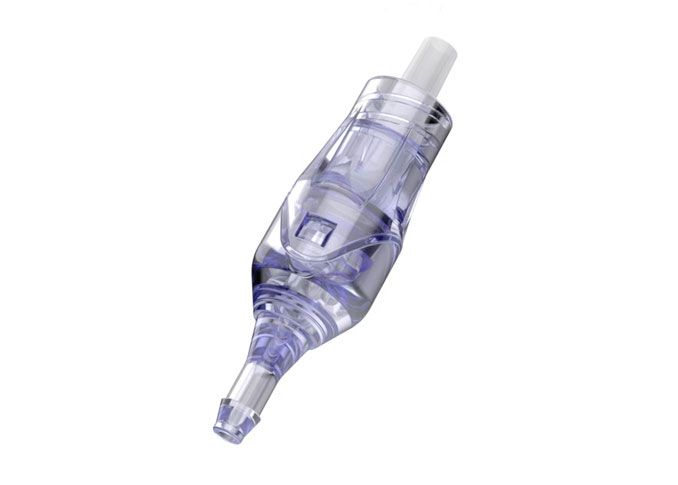

Optimized for tubing-based applications, this high-flow valve is designed for a secure slip fit into 0.125" ID tubing. It supports efficient fluid delivery in flushing, drainage, IV therapy, and home healthcare—without the need for clamping. The valve can be used to access a mating female luer connector or luer activated valve.
Features and Benefits
- Eliminates dripping and leakage when disconnected - no clamping required
- High flow rates
- Compatible with open female luer and valves
- Incorporates proven valve technology
- All materials are gamma resistant, ISO 10993 compliant, DEHP-free, and not made with natural rubber latex
Specifications and Technical Information
- Materials and available colors:
- Swabable stem: Clear silicone
- Luer valve body & base: Clear polycarbonate
- Luer & retainer: Clear polyproylene
- Barb end is designed for a slip fit into a 0.125" (3.1 mm) tube ID
- Luer compatible with ISO 594-2
Additional Information

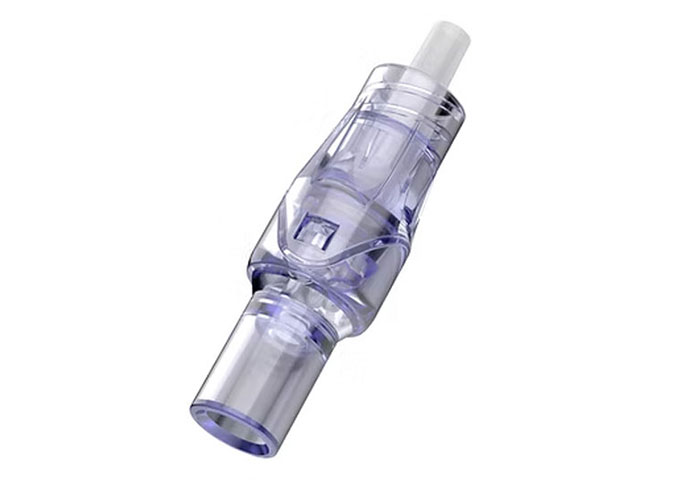

Designed for high-flow performance and easy tubing integration, this valve is ideal for flushing, drainage, IV therapy, and home healthcare applications. Its clamp-free, leak-resistant design supports efficient workflows and patient safety. The valves can be used to access a mating female luer connector or luer activated valve.
Features and Benefits
- Eliminates dripping and leakage when disconnected - no clamping required
- High flow rates
- Compatible with open female luer and valves
- Incorporates proven valve technology
- All materials are gamma resistant, ISO 10993 compliant, DEHP-free, and not made with natural rubber latex
Specifications and Technical Information
- Materials and available colors:
- Swabable stem: Clear silicone
- Luer valve body & base: Clear Polycarbonate
- Luer & retainer: Clear Polyproylene
- Colors: clear, red, blue, green, and yellow
- Tubing port is designed for 0.260" (6.6 mm) OD tubing
- Luer compatible with ISO 594-2
Additional Information
ISO 594-1 and ISO 594-2 Standard Luers
All Nordson MEDICAL luer locks, adapters and accessories are made to the ISO-594-1 and ISO 594-2 standards, and may be connected to other luer fittings meeting these ISO standards. If your application requires mating components from multiple suppliers, please test your application to verify the performance of the interconnection as other manufacturers' products may not meet the international standard.
Broad Selection of Luer Connectors
Offering one of the most extensive lines of plastic luer fittings and connectors in the industry, our products are econimical, reliable, and inexpensive.
- 120+ luer configurations
- Available in nylon, polypropylene, polycarbonate, polyvinylidene fluoride (PVDF), and other materials by special order
- Many color options
- Tubing connections ranging from 1/16" (1.6 mm) to 1/4" (6.4 mm) IDs
- Threaded ends and panel-mount versions
- Conformance to ISO-594-1 and ISO 594-2 standards
Technical Information
| Materials | Nylon Polypropylene Polycarbonate Polyvinylidene Fluoride (PVDF) Others by Special Order |
| Barb Sizes | Classic Series 200 Series 300 Series 400 Series 500 Series |
| Fits Tubing IDs | 1/16" (1.6 mm) to 1/4" (6.4 mm) |
| Sterilization | Autoclave EtO Compatible Gamma Radiation Stable |
Important: All HR Medical Components are shipped bulk, non-sterile, and are single patient use medical device components requiring further processing (e.g. assembly, packaging, sterilization) before clinical use. The buyer is responsible for determining effects of processing/multiple usage on these components, the appropriateness of the component in the final application, and pre/post sterilization shelf life.
