Bag Ports

Bag Ports

Shop Now »
Port Connectors

Port Connectors

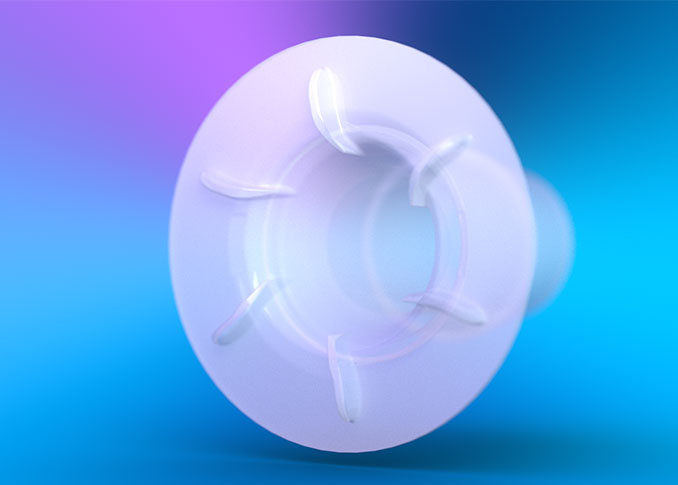

Innovative Parabolic Lead and Alignment Ribs

Nordson MEDICAL offers an advanced series of ports for the single-use bags used to transfer media and drug compounds in the biopharmaceutical industry. Value Pharma™ resin, designed for heat sealing with polyethylene bags, holds credentials that many manufacturers deem fundamental, such as animal derivative-free qualification and USP Class VI certification. The resin then goes even further to provide a strong, 24-hour resistance to alcohol stress cracking. RENOLIT SOLMED Granuflex 4301 resin demonstrates lower leachable levels and high purity. The most notable of the bag ports' specifications are the parabolic lead and the alignment ribs. These two features, respectively, reduce the amount of time it takes to drain a bag by up to 24 percent and improve flow dynamics through the port. They promote a uniform flow by guiding the product into a consistent, rotational path while reducing flow separation from the wall.

Shop Now »

Flow Test Results

To test volumetric flow rates, square-shoulder lead-in bag port models were measured against a Nordson MEDICAL design with a parabolic-shaped lead-in.

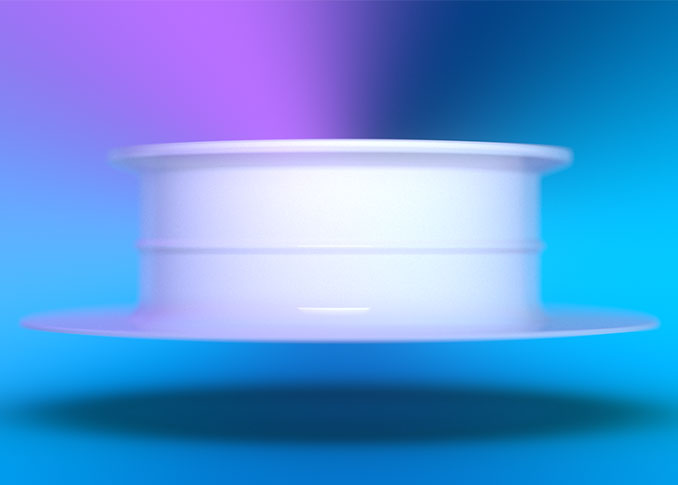

4 Inch TC Connection

Offering a 4" TC Connection

A Comprehensive Line of Products

Nordson MEDICAL is proud to announce the addition of a 4-inch bag port to its comprehensive high-tech series, which is specifically designed for use with powder and mixing applications. With this product offering, we now offer a full line of TC-style ports, hose barb ports, and dual barb options. In some cases, two material options are available to meet customers' extractables and material of construction needs.

Bag Port Designs

Nordson MEDICAL provides two reliable design styles for secure connections. Our barbed bag ports are designed to grip the inside of a tube, while our ferrule bag ports, often part of a tri-clover fitting system, mate securely with a clamp or fitting. Both styles ensure strong and dependable connections.

Value Pharma™ Resin

Our USP Class VI-certified polyethylene resin is free from animal derivatives and exhibits strong resistance to alcohol stress cracking.

Increased Flow Rates

Our bag ports provide maximum efficiency while maintaining first-rate quality.

  • Innovative parabolic lead reduces drain time by 17% to 24%
  • Alignment ribs improve fluid dynamics through the port
  • Compliant with ASME BPE ferrule specifications
  • Compatible with leading industry single-use bags
  • Materials meet USP Class VI criteria
  • Resins ensure heat sealing with polyethylene bags
  • Animal-free materials
Technical Information
Materials Value Pharma™ Resin (Polyethylene) - Resistant to Alcohol Stress-Cracking
RENOLIT SOLMED Granuflex 4301 Resin (Polyethylene) - Lower Leachable Levels & High Purity
Barb Sizes 600 Series
Fits Tubing IDs 1/8" (3.2 mm) to 4" (101.6 mm)
Sanitary TC Port Sizes 1-1/2" (38.1 mm)
3" (76.2 mm)
4" (101.6 mm)
Flow Rate 8.37 gpm (3.78 L/min)
Test Data Flow Test Results
Validation Test Results

Opposing Barb Ports

We also make quality dip tubes that are well-suited to work with sensors.

  • Easy to heat-seal into film material
  • Can be used in filling applications
  • Well-suited to work with sensors
  • Works great with silicone and TPE tubing
  • Strong tube retention
  • Animal-free materials
  • Materials meet USP Class VI criteria
Technical Information
Materials Value Pharma™ Resin (Polyethylene) - Resistant to Alcohol Stress-Cracking
RENOLIT SOLMED Granuflex 4301 Resin (Polyethylene) - Lower Leachable Levels & High Purity
Barb Sizes 600 Series
Fits Tubing IDs 3/16" (4.8 mm) to 3/4" (19.0 mm)

Gaskets

Need an additional layer of leak prevention? Our gaskets help ensure your connection is tight.
