Aseptic Disconnects
Shop Now »

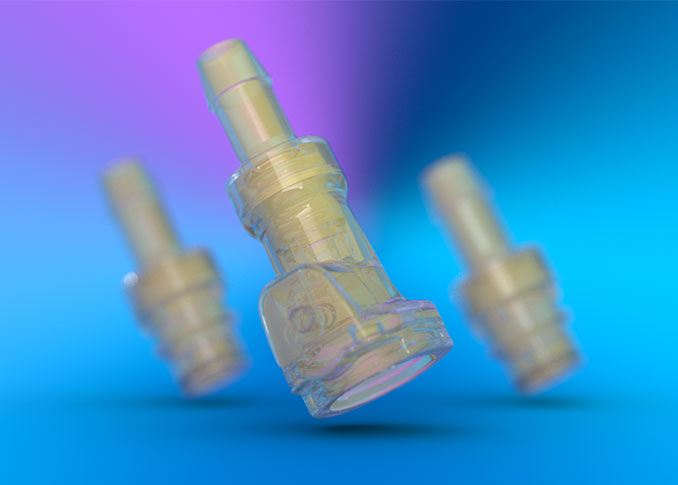

Quick Disconnect Fittings
Easy-to-Use Design for a Smooth Disconnect
Providing a leak-free connection, Spaulding Series™ aseptic disconnects eliminate the need for pinch clamps and tube welders. Smooth disconnects are achievable with the easy-to-use design, and valuable fluids are protected by valves that automatically shut off flow when the fittings are disconnected. Available in USP Class VI, ADCF polysulfone, validation and test results confirm their suitability in pre-sterilized systems and are also gamma radiation stable.

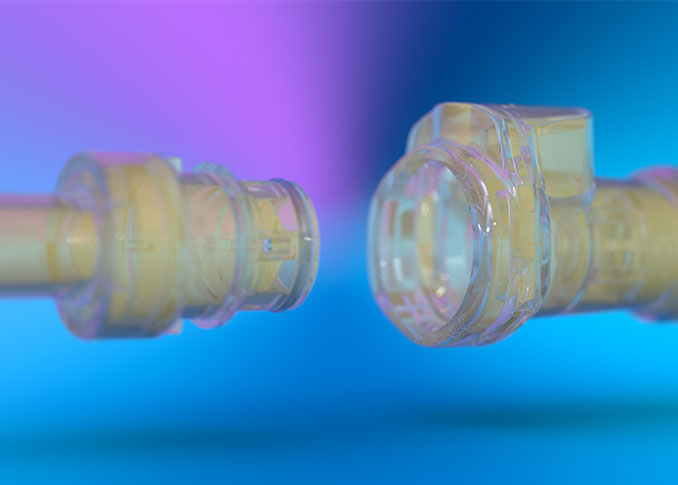

Interchangeability
Meeting Industry Requirements
Nordson MEDICAL is not only dedicated to innovation, but we design our fittings to meet industry requirements and to be interchangeable with other plastic connectors — allowing front-line workers to focus on saving or enhancing the lives of patients around the world.
Increased Stability
Vaccine Distribution During Cold Transport
In the global response to slow the spread of COVID-19 and deliver vaccines throughout the world, Nordson MEDICAL is playing an integral part by bolstering the cold transport of vaccines with our Spaulding Series™ aseptic disconnects. With the ability to perform leak-free at temperatures down to -112° F (-80° C), our aseptic disconnects allow for the increased stability of vaccines throughout the cold chain. The connectors are suitable for all cold chain applications that require both an aseptic disconnect and valve to maintain a sterile barrier during product transport.
Quality Materials
In addition to the quality design of our aseptic disconnects, we use only quality materials, such as USP Class VI ADCF polysulfone, which is designed to be suitable for pre/post-sterilized systems.
Quick Disconnect Couplings
Spaulding™ Series quick disconnects provide affordable leak-free connections.
- Valves automatically shut off flow at disconnection
- Interchangeable with other plastic connectors
- Plugs and caps available to maintain fluid path integrity
- Made with BSE/TSE-free materials
- Validation and test results confirm their suitability in pre-sterilized systems
- Materials satisfy USP Class VI criteria
- Fittings meet industry requirements
- Aseptic disconnect operation
Technical Information
| Materials | Body - USP Class VI ADCF Tinted Polysulfone O-Rings - Platinum-Cured Silicone Springs - 316 Stainless Steel |
| Fits Tubing IDs | 1/4" (6.4 mm) 3/8" (9.5 mm) 1/2" (12.7 mm) |
| Sterilization | Autoclavable Up to 270° F (132° C) for a Maximum of 60 Minutes Gamma Radiation Stable Up to 50 kGy |
| Operating Temperature | -40° F (-40° C) to 280° F (138° C) |
| Leak Resistance | 125 psi, 8.62 bar |
