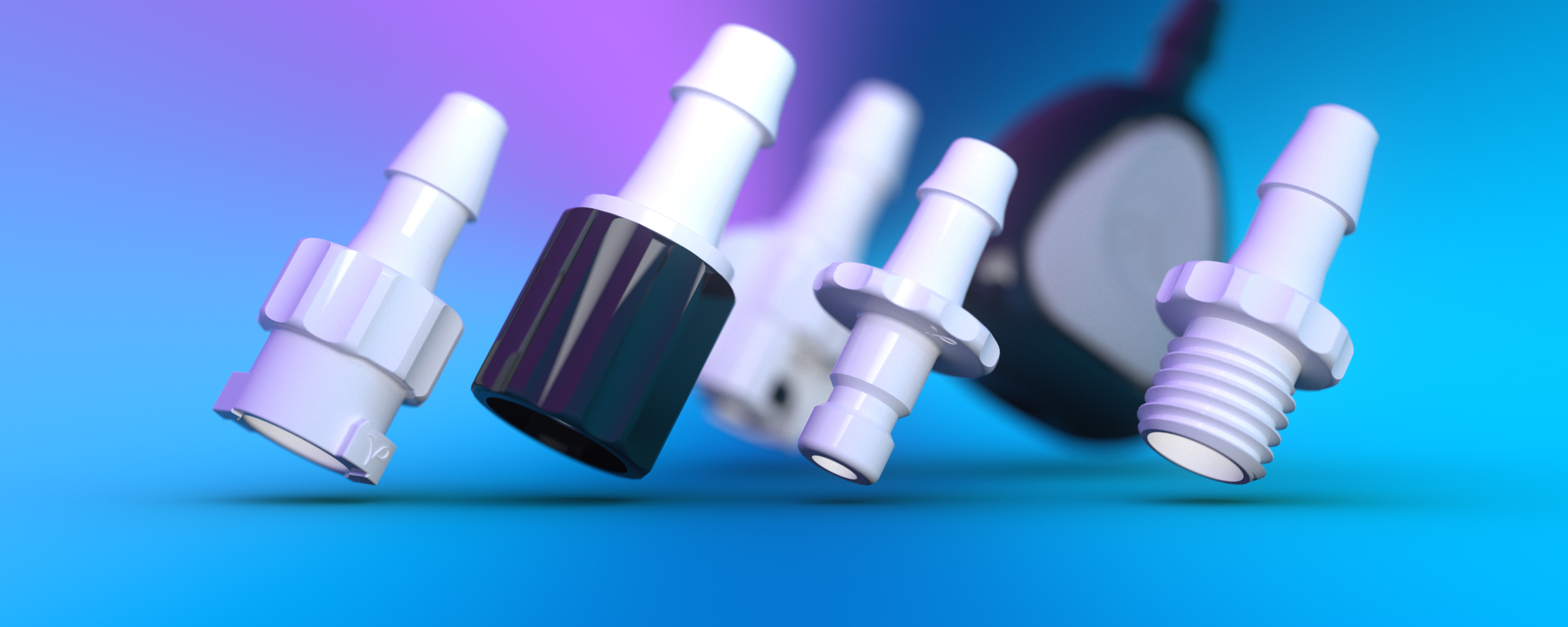

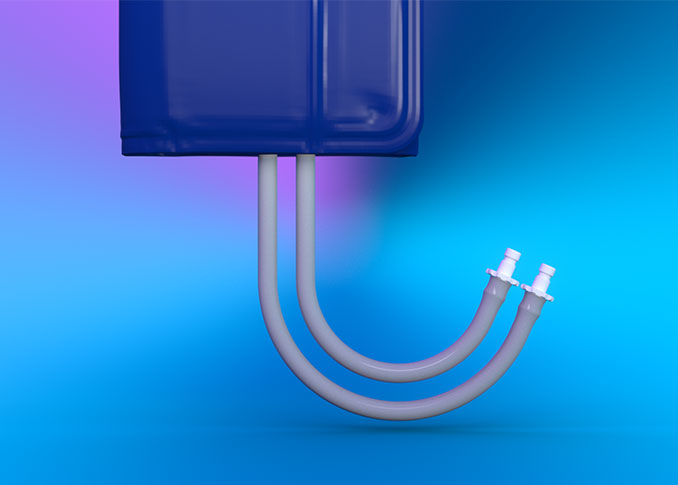

Precision-Engineered BP Fittings
Trusted Compatibility and Performance
Nordson MEDICAL offers a comprehensive range of blood pressure fittings and connectors, designed specifically for use with noninvasive blood pressure (NIBP) monitoring equipment. Our Value Plastics line includes high-quality blood pressure cuff connectors and monitor cable adapters, compatible with both bayonet (push to connect) and DINAMAP® (threaded) standards. These fittings accommodate tube sizes from 3/32" (2.4 mm) to 3/16" (4.8 mm), ensuring a secure and reliable connection for accurate blood pressure monitoring. With our precision-engineered components, we guarantee compatibility and performance, making us a trusted partner in medical equipment supply.
ISO 80369-5 Compliant Blood Pressure Fittings
ISO 80369-5 compliant blood pressure fittings ensure safe and precise limb cuff inflation for blood pressure monitoring and tourniquet applications, specifically designed with smaller bores to prevent misconnections with other medical devices interacting with the body.

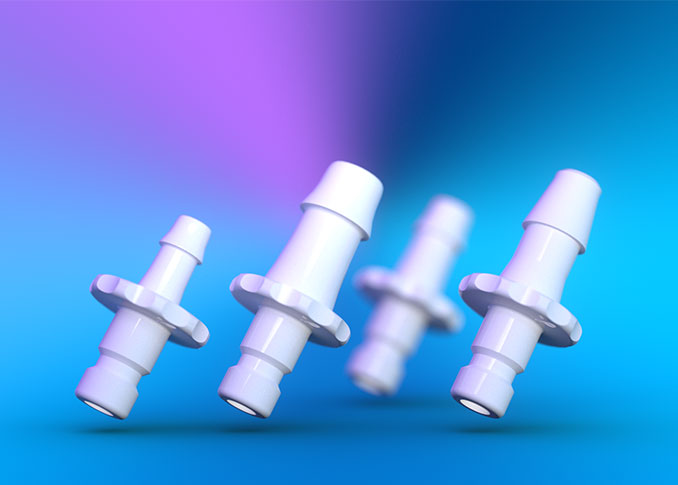

Male Bayonet Connectors
ISO 80369-5 Compliant Fittings
Nordson MEDICAL proudly offers ISO 80369-5 compliant blood pressure fittings, adhering to the globally recognized standard for bayonet-style connectors used in blood pressure cuffs. Our fittings serve as a suitable alternative to ISO 594 luers and other parts prone to misconnection, thanks to their precise dimensional specifications, which significantly reduce the risk of errors. Designed for full compliance, our male blood pressure connectors fit both singly and in pairs on cuffs, seamlessly integrating with both compliant and non-compliant bayonet-style female connectors. Featuring single-barb designs, our connectors ensure a secure fit with exceptional tensile strength and hydrostatic burst performance, surpassing traditional multi-barb designs. Made from durable DuPont Zytel® nylon, our connectors are renowned for their reliability and toughness, making them the optimal choice for safe and effective blood pressure monitoring.

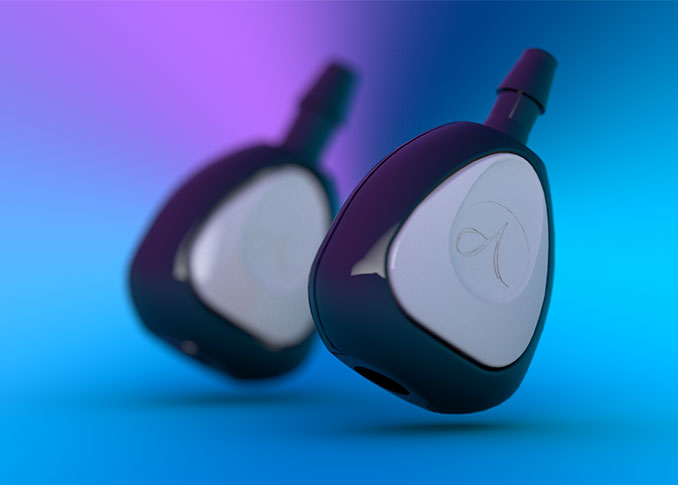

Female BP Connectors
Complementary to ISO 80369-5 Compliant Fittings
Our female quick connect fittings for blood pressure monitoring are designed to perfectly complement our ISO 80369-5 compliant male bayonet connectors. Featuring an ergonomic design, these fittings allow for simple, one-handed operation, making it easy to connect and disconnect from existing tubing. Many healthcare facilities are replacing their traditional metal bayonet connectors with these lightweight and durable alternatives. Compatible with both compliant and noncompliant male connectors, our female blood pressure connectors ensure seamless integration with male bayonet connectors, enhancing the efficiency and reliability of blood pressure monitoring systems.

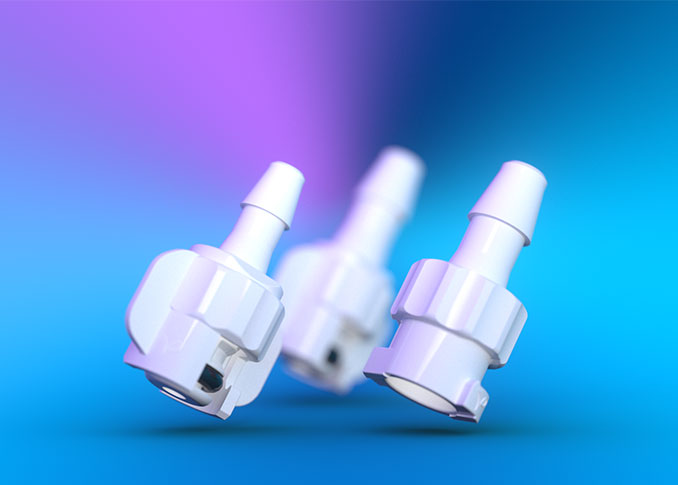

Twist-Lock Blood Pressure Connectors
Complete Confidence in a Quarter of a Turn
Our twist-lock blood pressure fittings feature a quarter-turn design, ideal for use in blood pressure cuffs and other blood pressure applications. With strong tensile pull resistance, a resilient o-ring, and an enhanced latch wall thickness, these connectors provide a robust seal for a secure connection. Crafted from medical-grade ABS material, they offer exceptional durability and can operate within a temperature range of 0° C to 45° C, making them suitable for bulk sterilization processes. Additionally, these connectors are compatible with other connectors on the market, ensuring versatile and reliable performance.

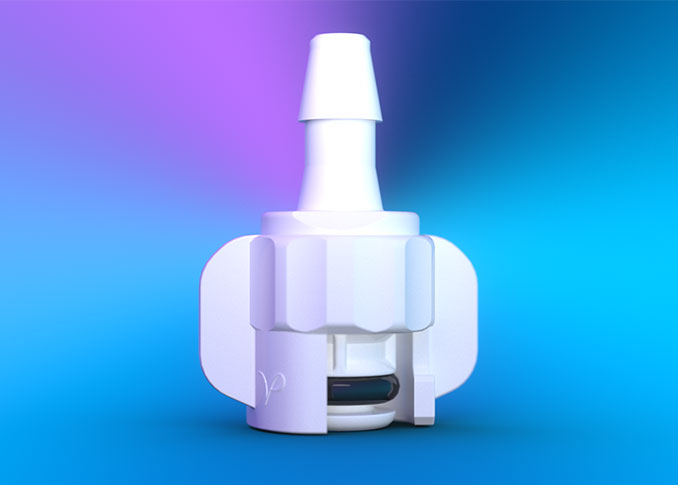

Superior Ergonomics
Twist-Lock Blood Pressure Fitting Features
These features can be crucial in healthcare environments due to hindrances such as dark rooms, baggy rubber gloves, and the potential for situations that don't allow time for fumbling.
The patent-pending wings on either side of the male connector prevent finger slippage, making the quarter-turn connection easier and more secure.
Multiple notches surrounding the lug reduce the likelihood of the fittings slipping between fingers. While this is currently a feature on a variety of Nordson MEDICAL fittings, these connectors offer a wider grip to improve ease of use and is available on both the male and female connectors.
The snap-on connection provides a distinct audible click, ensuring the user both hears and feels when the two latches are fully engaged, giving a clear indication of a secure connection.
The independently rotating barb allows tubing to turn freely during use without kinking or twisting, ensuring uninterrupted flow. Unlike other connectors where the tubing contacts the fitting body and creates friction, our "tube-stop" design prevents such contact. This ensures the barb can rotate independently, maintaining smooth operation.
Hand Pumps
Inflation, Evacuation, and Sampling Devices
Nordson MEDICAL's hand pump series supports a wide variety of medical inflation and evacuation needs. From infusion cuffs to fluid drainage and air sampling, each model offers durable, latex-free performance and compatibility with various fittings and valves to suit specialized use cases.

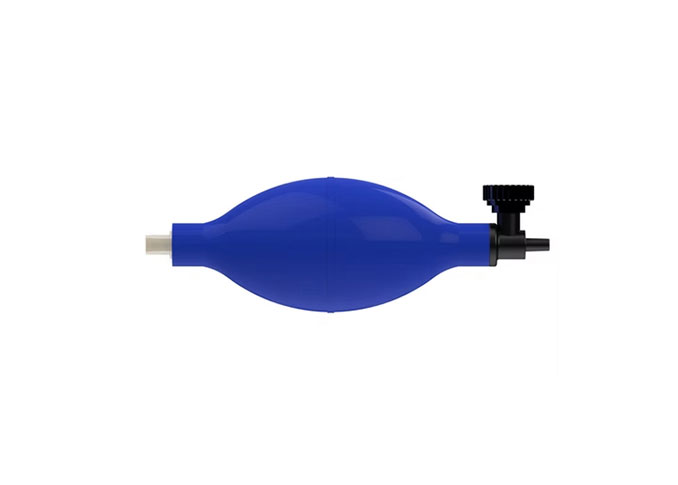

The V15900 series 50cc hand pump is ideal for inflating or evacuating medical devices such as infusion cuffs, blood pressure cuffs, air bladders, and cushions. It can also be used for air sampling in clinical or lab environments.
Available with a wide variety of end fittings and check valves. Pumps are not made with natural rubber latex.
Features and Benefits
- Available with a wide variety of end fittings and check valves
- Pumps are not made with natural rubber latex
- Color: dark blue
Specifications and Technical Information
- Materials:
Additional Information

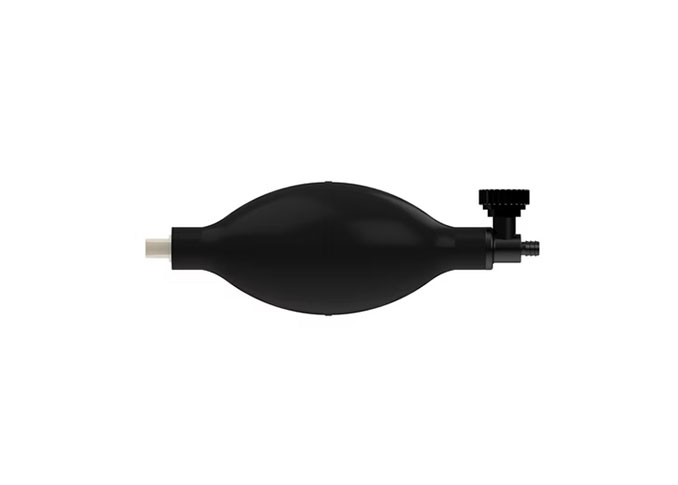

The V15600 series 80cc hand pump provides high-capacity inflation and evacuation for devices including infusion cuffs, blood pressure cuffs, and air bladders. Also suitable for use as an air sampling device.
- High-capacity 80cc output for fast inflation and evacuation of infusion cuffs, blood pressure cuffs, and air bladders
- Versatile design with a wide variety of end fittings and check valves for compatibility with multiple devices
- Latex-free construction to reduce the risk of allergic reactions and ensure patient safety
Features and Benefits
- Available with a wide variety of end fittings and check valves
- Pumps are not made with natural rubber latex
- Available colors: black
Specifications and Technical Information
- Materials:
- Pump body: flexible PVC
Additional Information

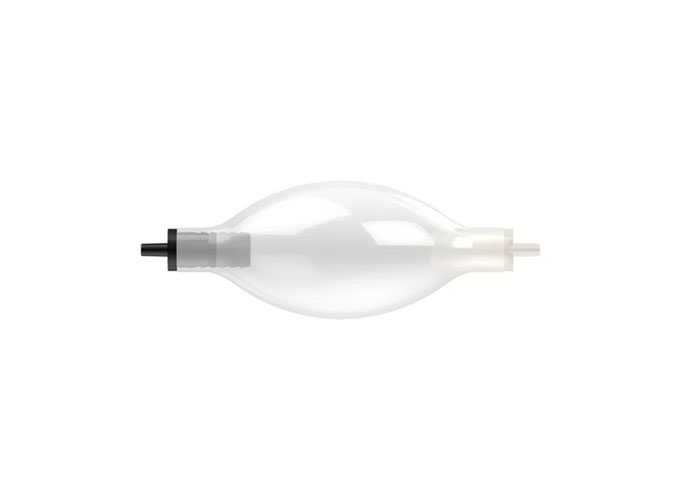

Our V15700 series 50cc hand pumps are designed to inflate or evacuate devices such as infusion cuffs, blood pressure cuffs, air bladders, air cushions and many other products. Hand pumps can also be used as pumps in fluid drainage applications or as air sampling devices.
Features and Benefits
- Available with a wide variety of end fittings and check valves
- Pumps are not made with natural rubber latex
Specifications and Technical Information
- Materials and available colors:
- Pump body of flexible PVC in dark blue
- Pump body of urethane in clear, green, and dark blue
Additional Information
Application Testing
When working with blood pressure fittings, Nordson MEDICAL strongly recommends that you test sample parts in your application.
Secure Blood Pressure Fittings
Nordson MEDICAL's comprehensive range of precision-engineered blood pressure fittings are designed for secure and reliable connections in blood pressure devices.
- Suitable alternatives to luer connectors
- Ergonomic designs for simple one-handed operation
- Single barbs for a secure connection and improved tensile and burst performance
- Options compatible with other industry connectors
- Connectors compatible with Dinamap®
- Male bayonet connectors compliant with ISO 80369-5 standards
- Female quick connects with a simple latch design that work with bayonet connectors
- Twist-lock designs for easy quarter-turn connections
- Male connectors that fit singly and in pairs on cuffs
Technical Information
| Materials | DuPont Zytel® Nylon Black ABS Medical-Grade ABS Acetal Buna-N O-Rings PVC |
| Barb Sizes | 200 Series 500 Series |
| Fits Tubing IDs | 3/32" (2.4 mm) 1/8" (3.2 mm) 5/32" (4.0 mm) 3/16" (4.8 mm) |
| Sterilization | Some options can withstand bulk sterilization |
Important: All HR Medical Components are shipped bulk, non-sterile, and are single patient use medical device components requiring further processing (e.g. assembly, packaging, sterilization) before clinical use. The buyer is responsible for determining effects of processing/multiple usage on these components, the appropriateness of the component in the final application, and pre/post sterilization shelf life.
Custom Components
Whether it's a slight modification of one of our catalog components, a design that you need manufactured, or something completely unique that requires full product development, Nordson MEDICAL has the experience and proficiency to support your project from concept through full-scale manufacturing.
